Replicating via AWS DMS

Use AWS DMS to replicate data from RDS PostgreSQL to CedarDB

Overview

  • Set up a CedarDB instance in EC2 using whichever approach suits you. I prefer CloudFormation templates, for their repeatability.
  • When the CedarDB instance is running, note its VPC and deploy the remaining components into that same VPC.
  • Deploy an RDS Postgres instance, or enable logical replication for your existing instance.
  • Create a schema in RDS and load it with some data.
  • Verify that schema and data gets replicated from RDS Postgres to CedarDB.

Deploy your CedarDB instance

Here, I’ve used two CloudFormation templates:

Note the following values for the CedarDB instance:

  • Private IPv4 addresses and VPC ID values from the EC2 dashboard view for the resulting instance (see below)
  • The values shown in the Outputs tab in the CloudFormation UI

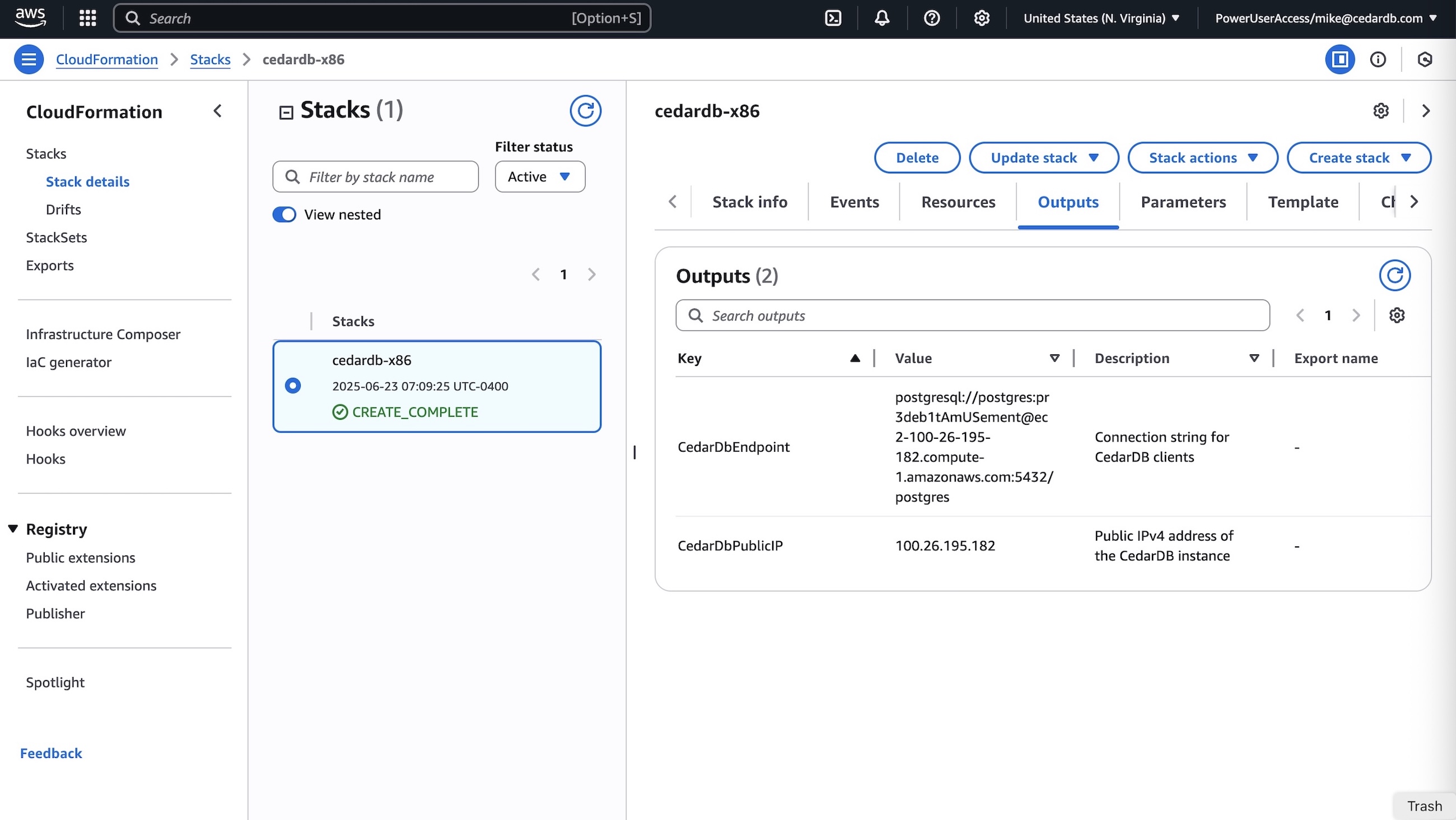

CloudFormation outputs

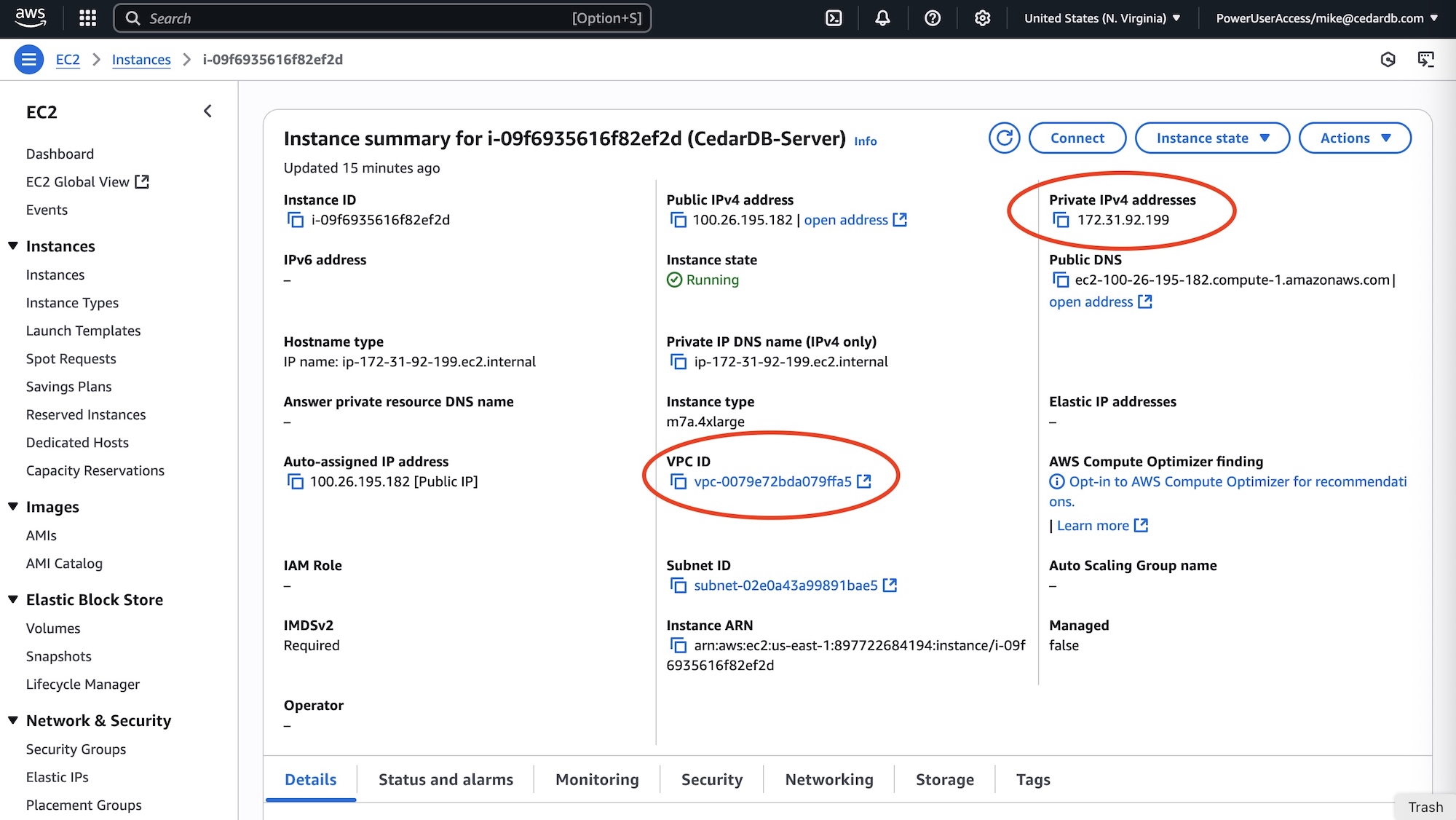

EC2 instance details

Create the DMS Replication instance

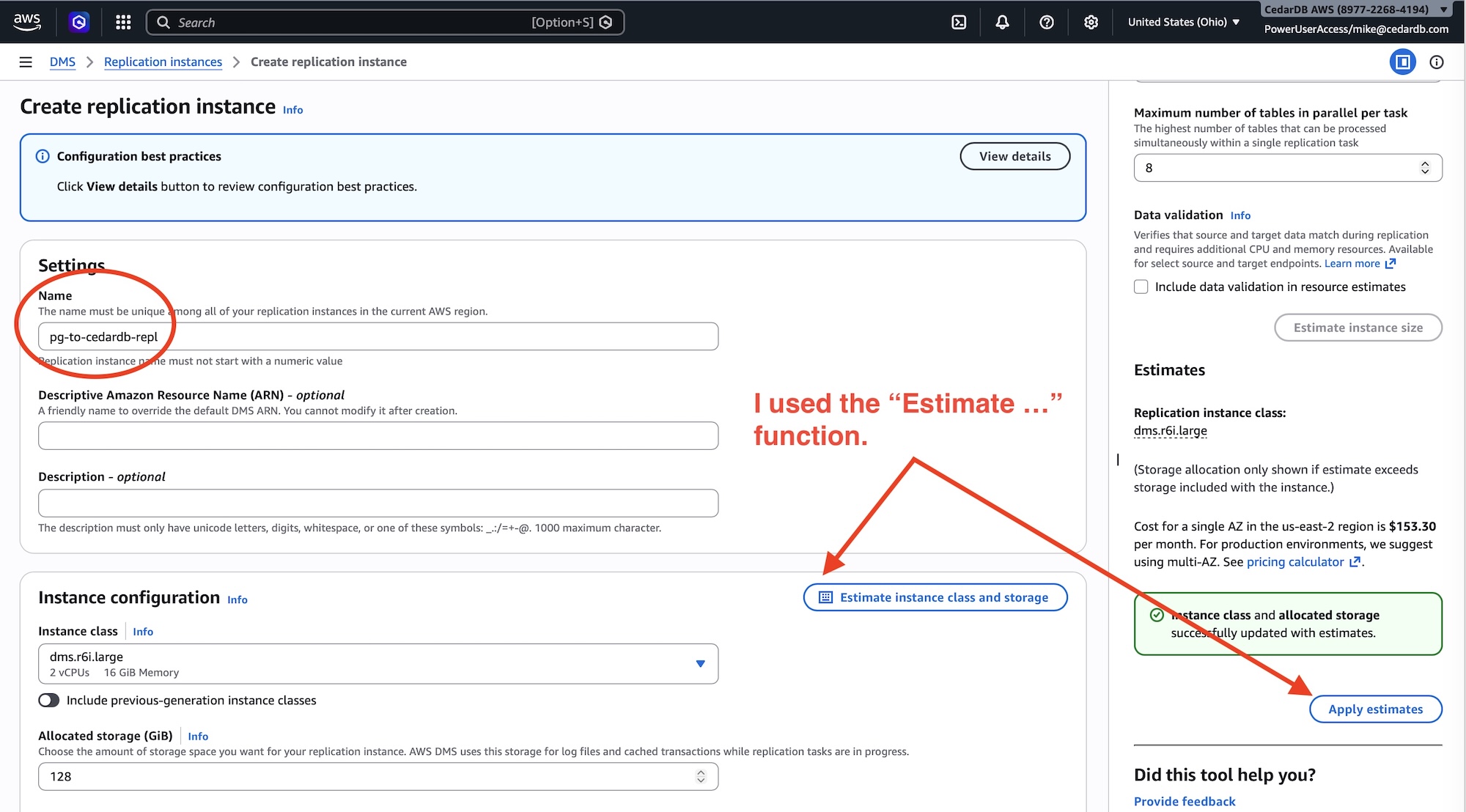

Create replication instance step 1

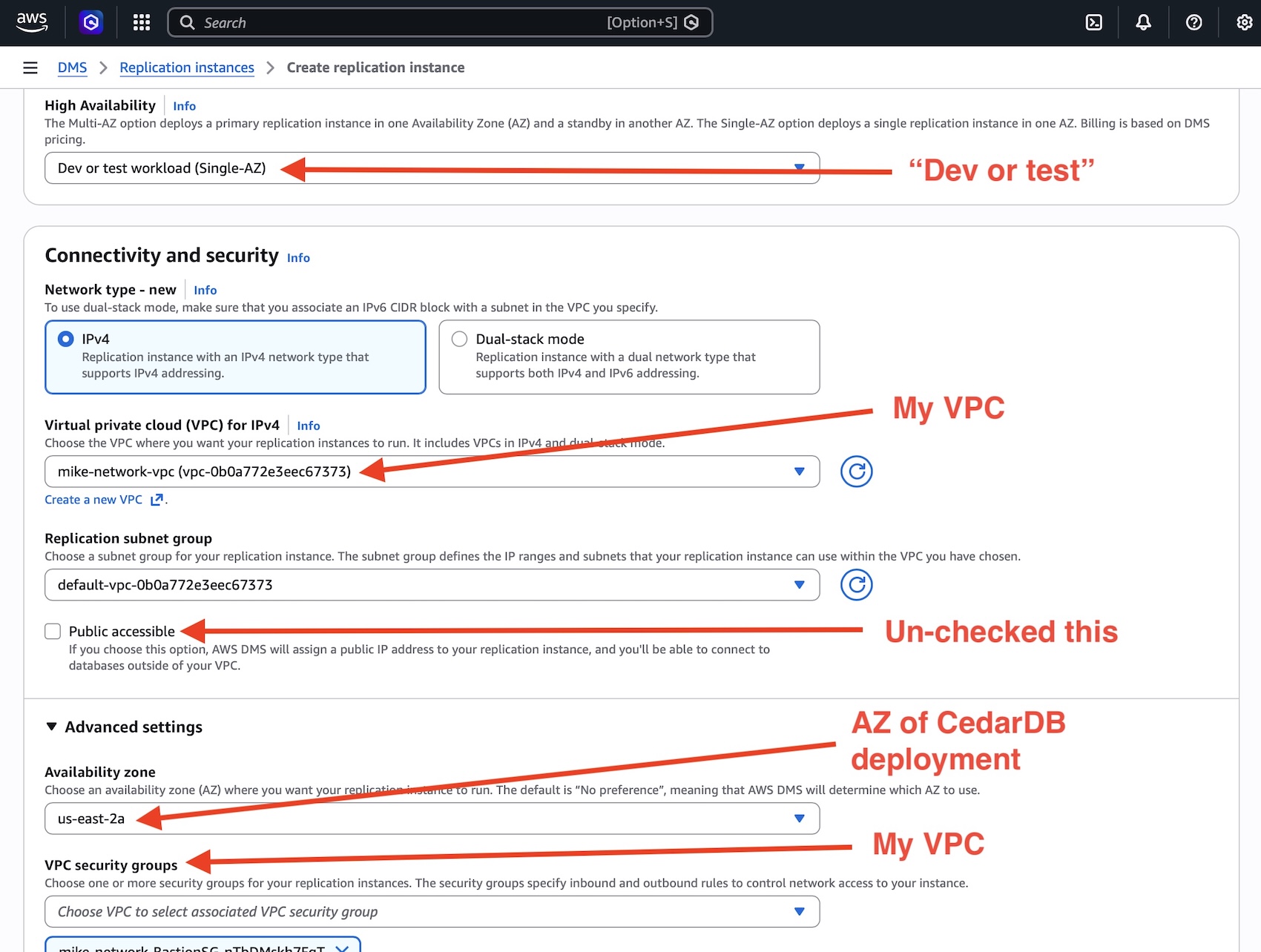

Create replication instance step 2

Finally, click the “Create replication instance” button. This process will take a while, so you can continue and check on the replication instance later.

Configure an RDS parameter group

This RDS parameter group which will enable logical replication to DMS.

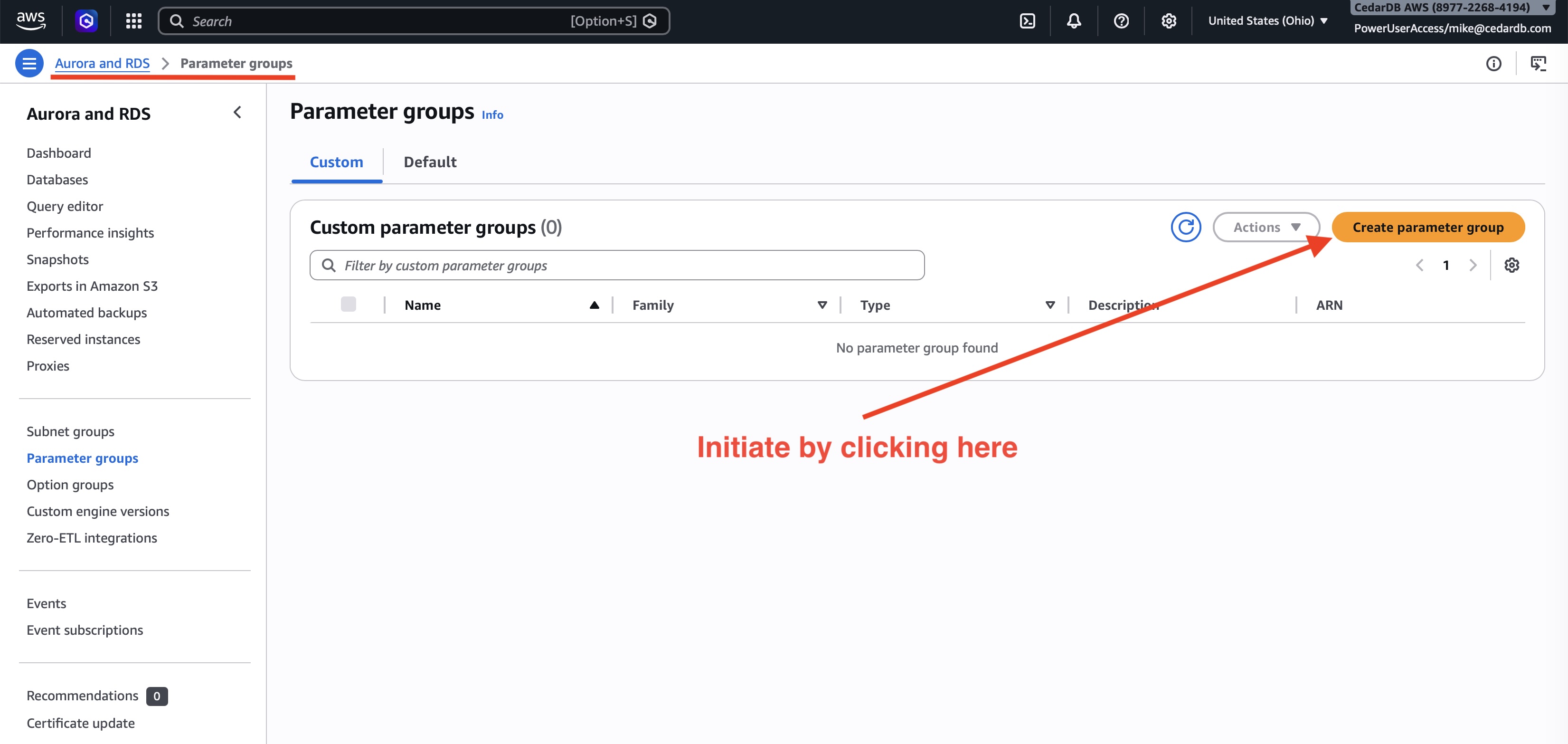

Create parameter group 1

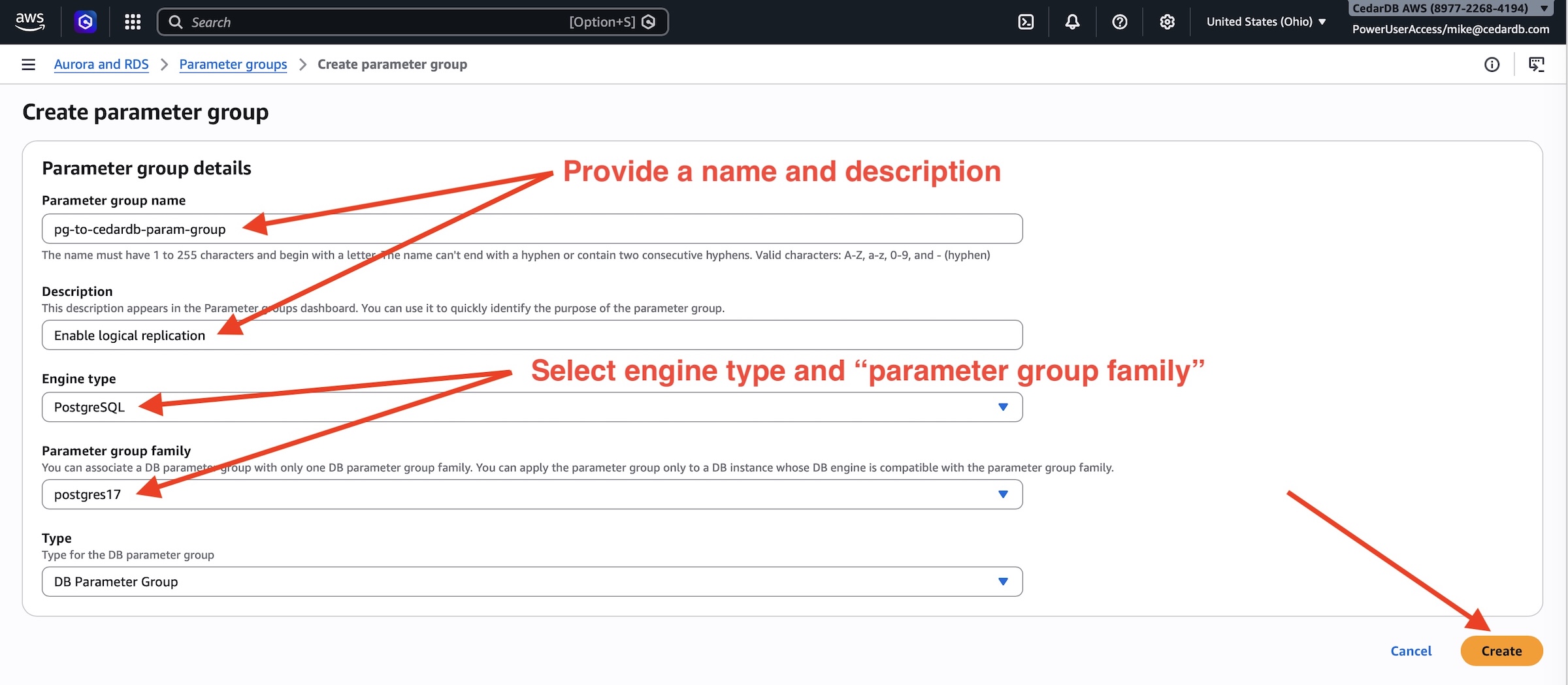

Create parameter group 2

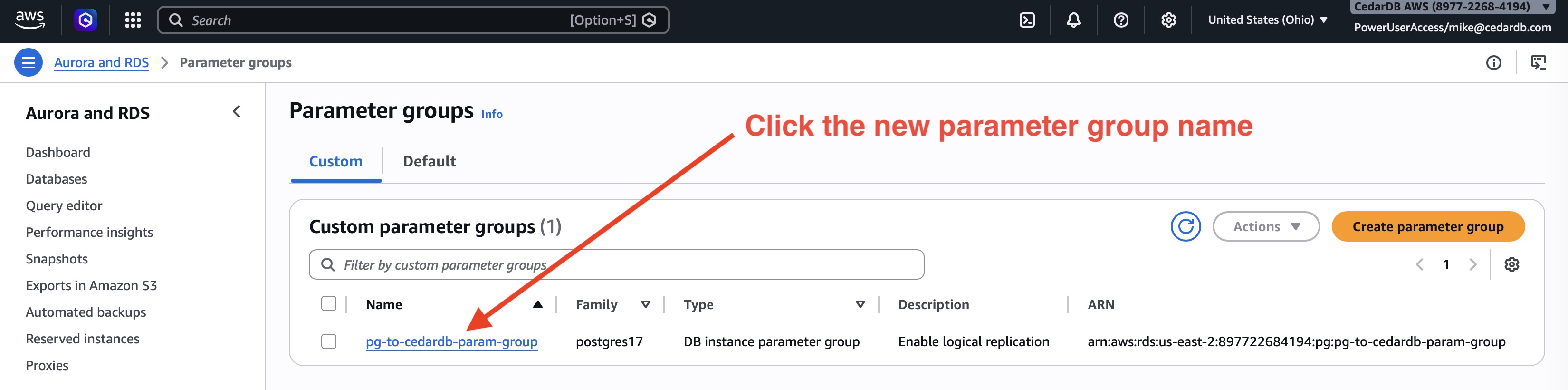

Select new parameter group

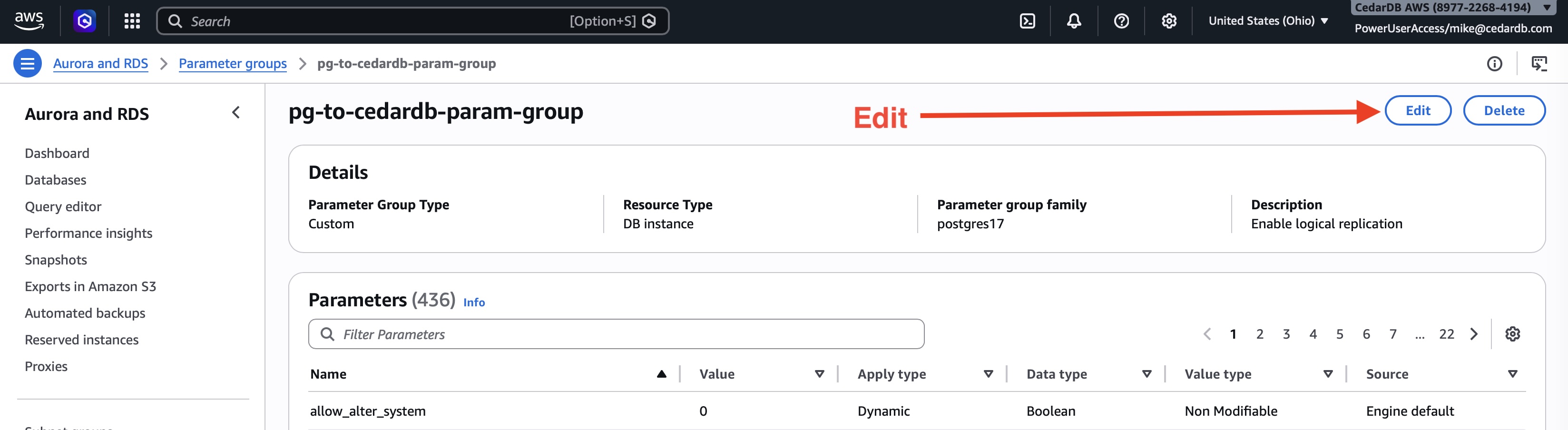

Edit new parameter group

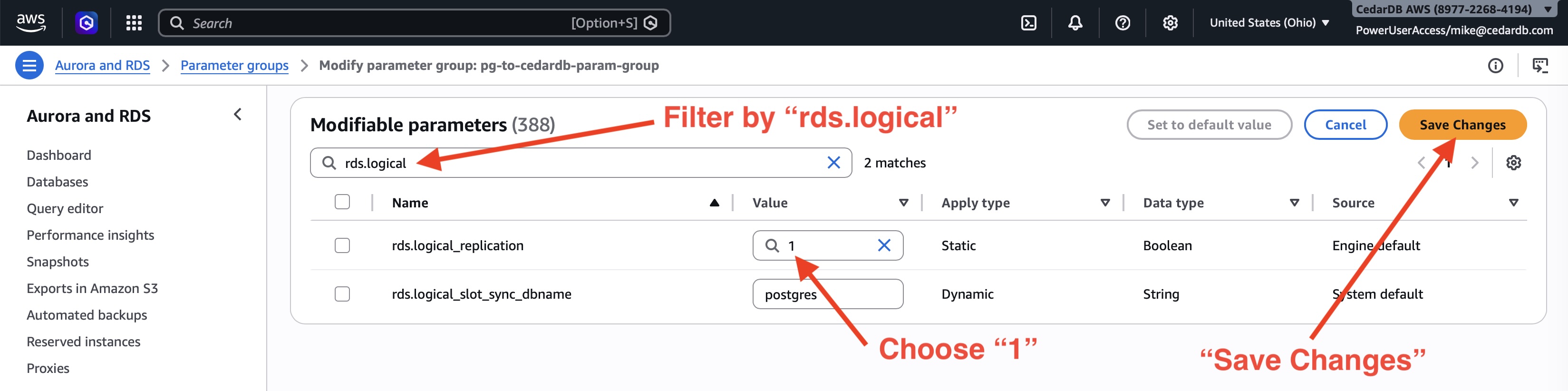

Enable logical replication

Deploy a new RDS Postgres instance

If you want to use your existing RDS Postgres instance, skip this section and head down to Configure your existing RDS Postgres instance.

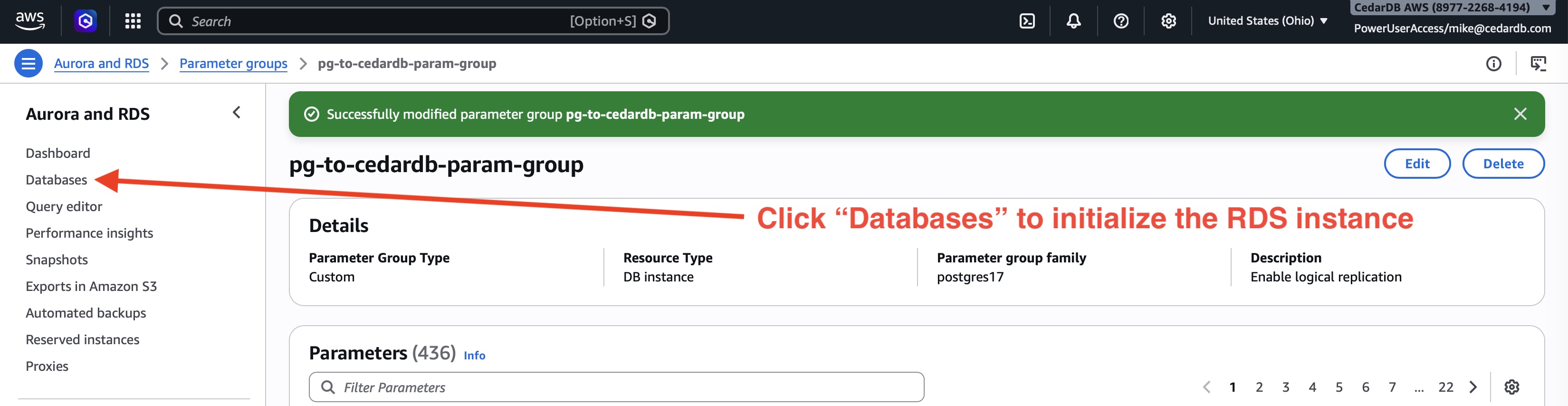

Navigate to RDS

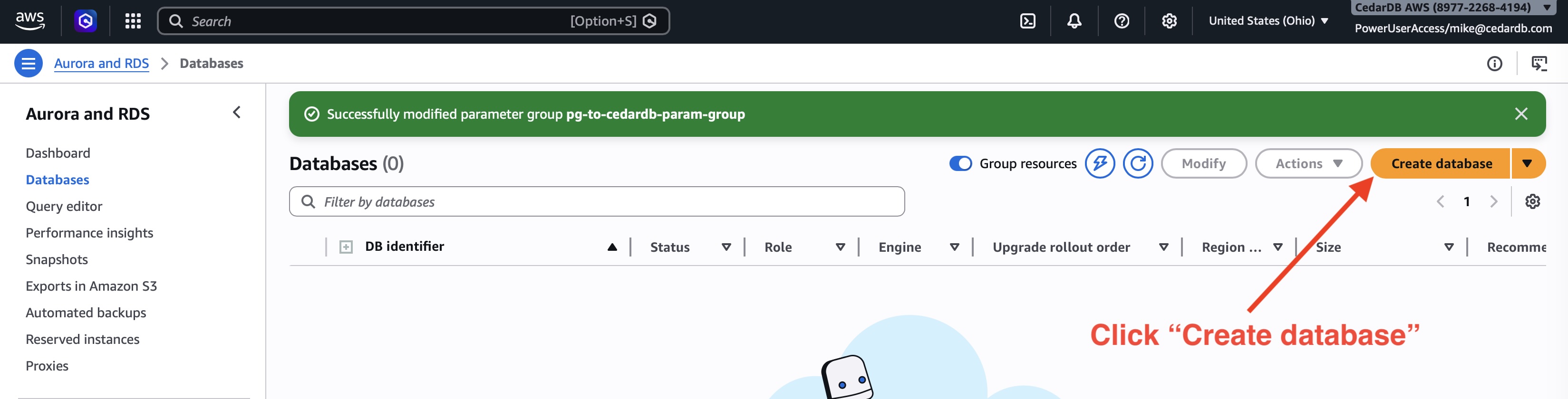

Click Create

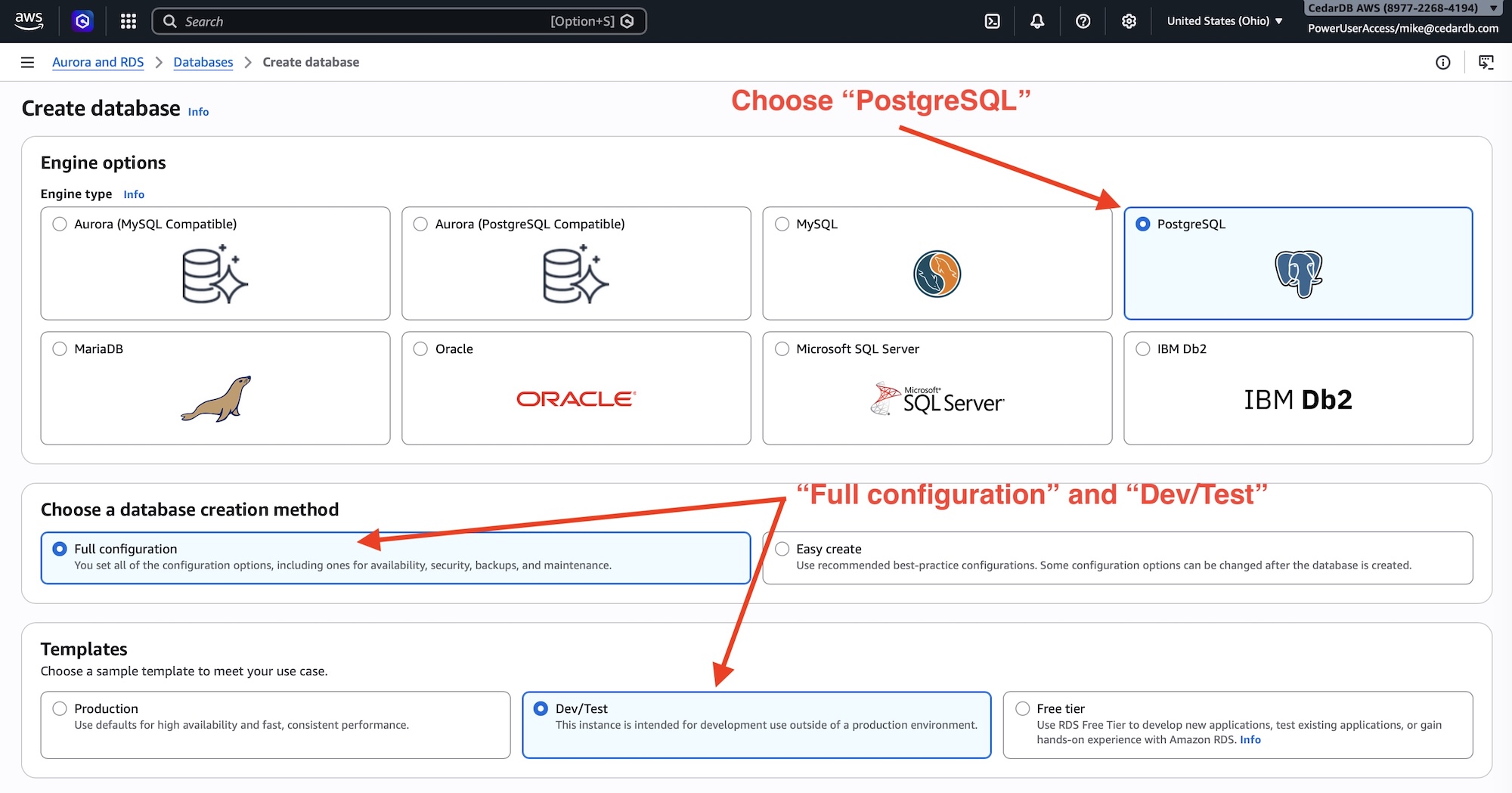

Choose PostgreSQL

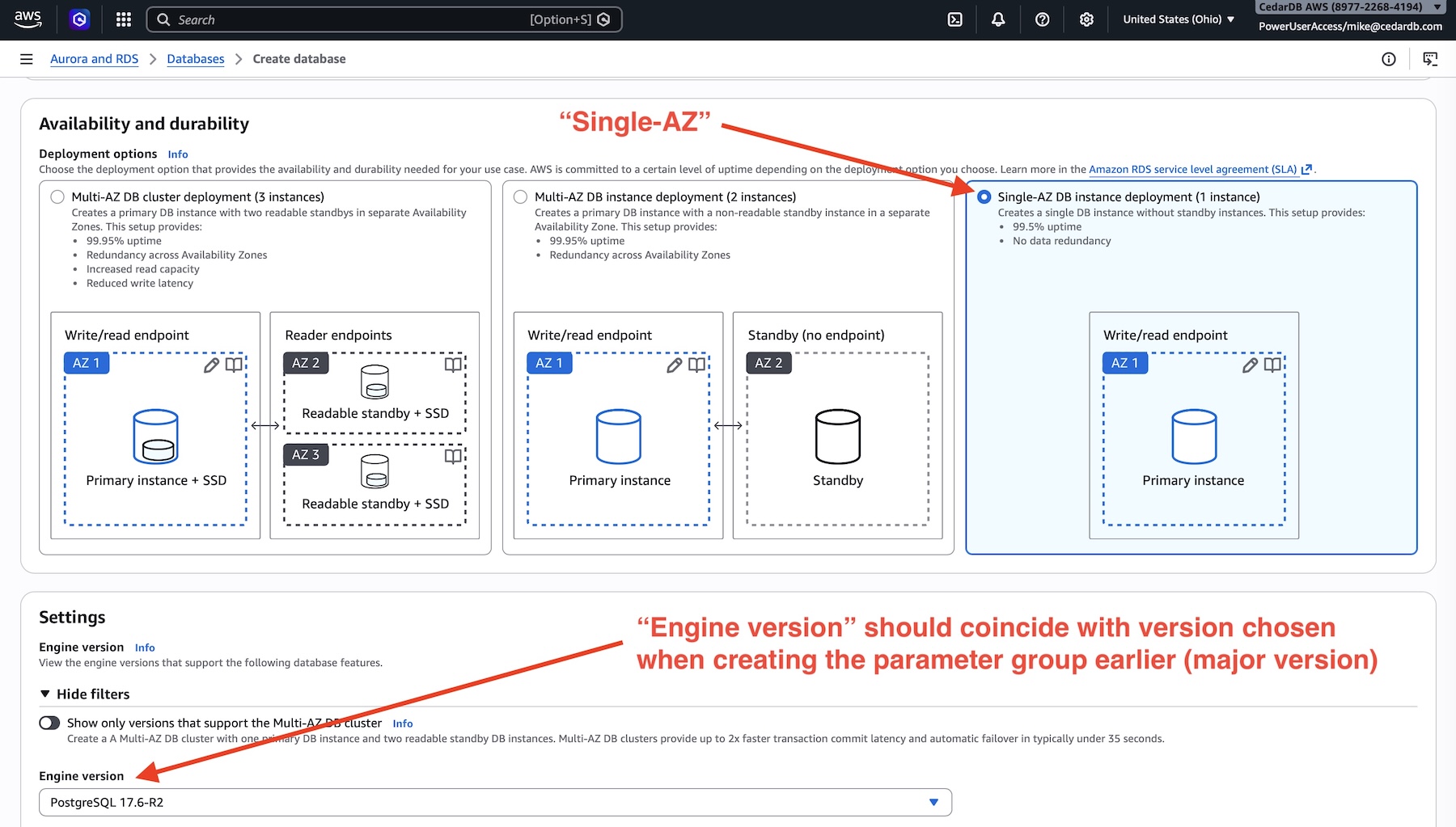

Version, dev test, single AZ

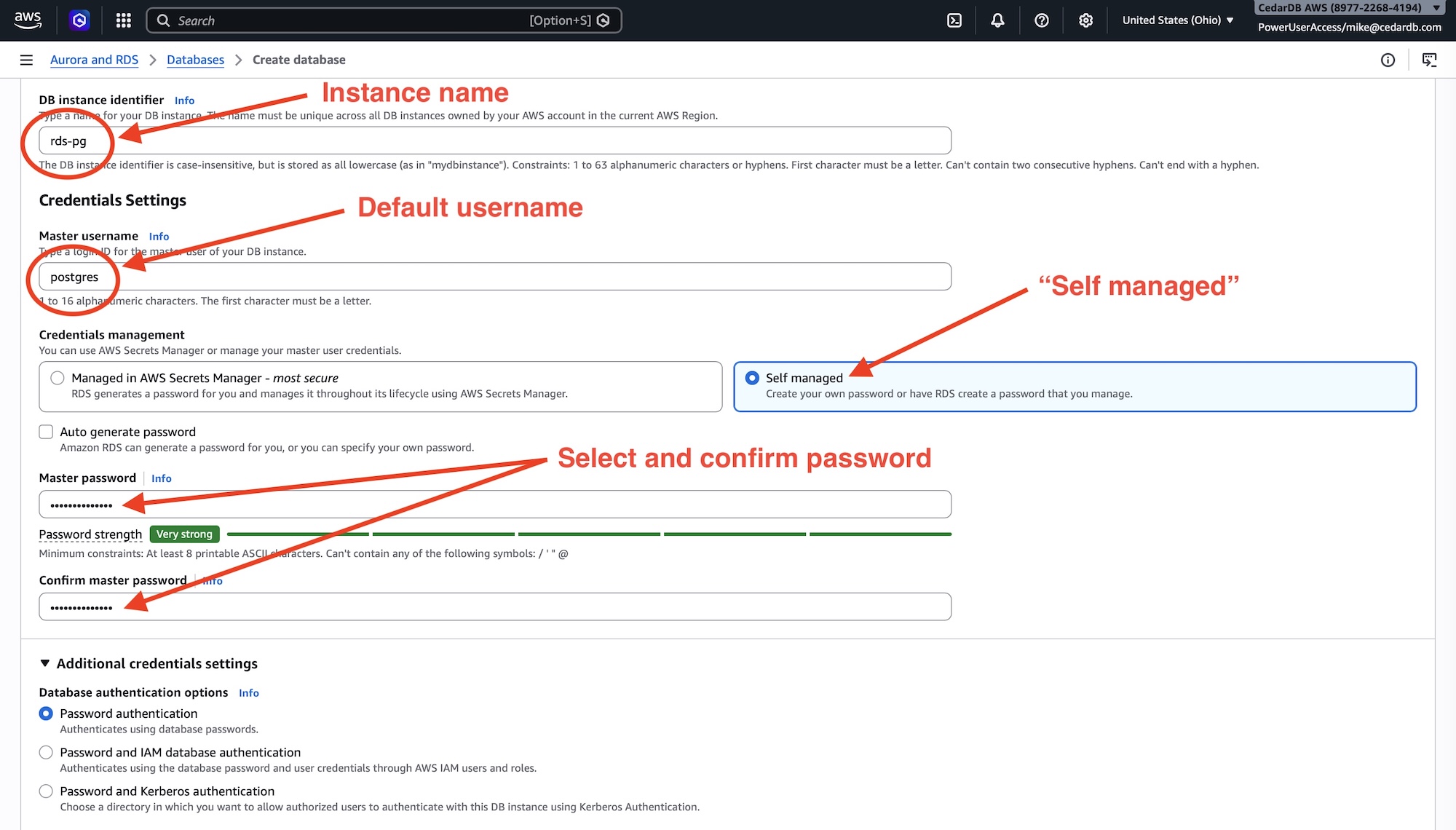

Credentials

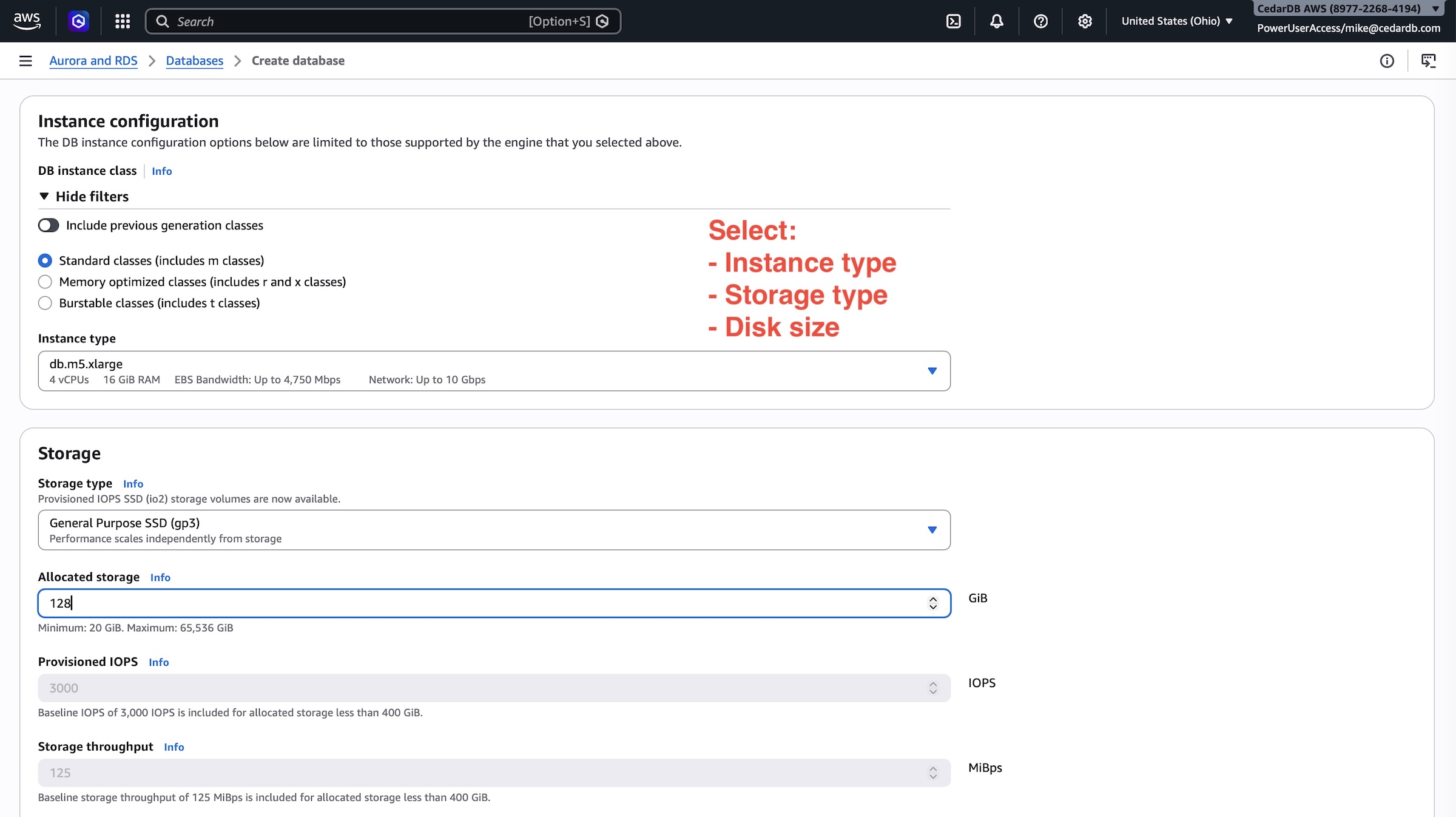

Instance type and storage

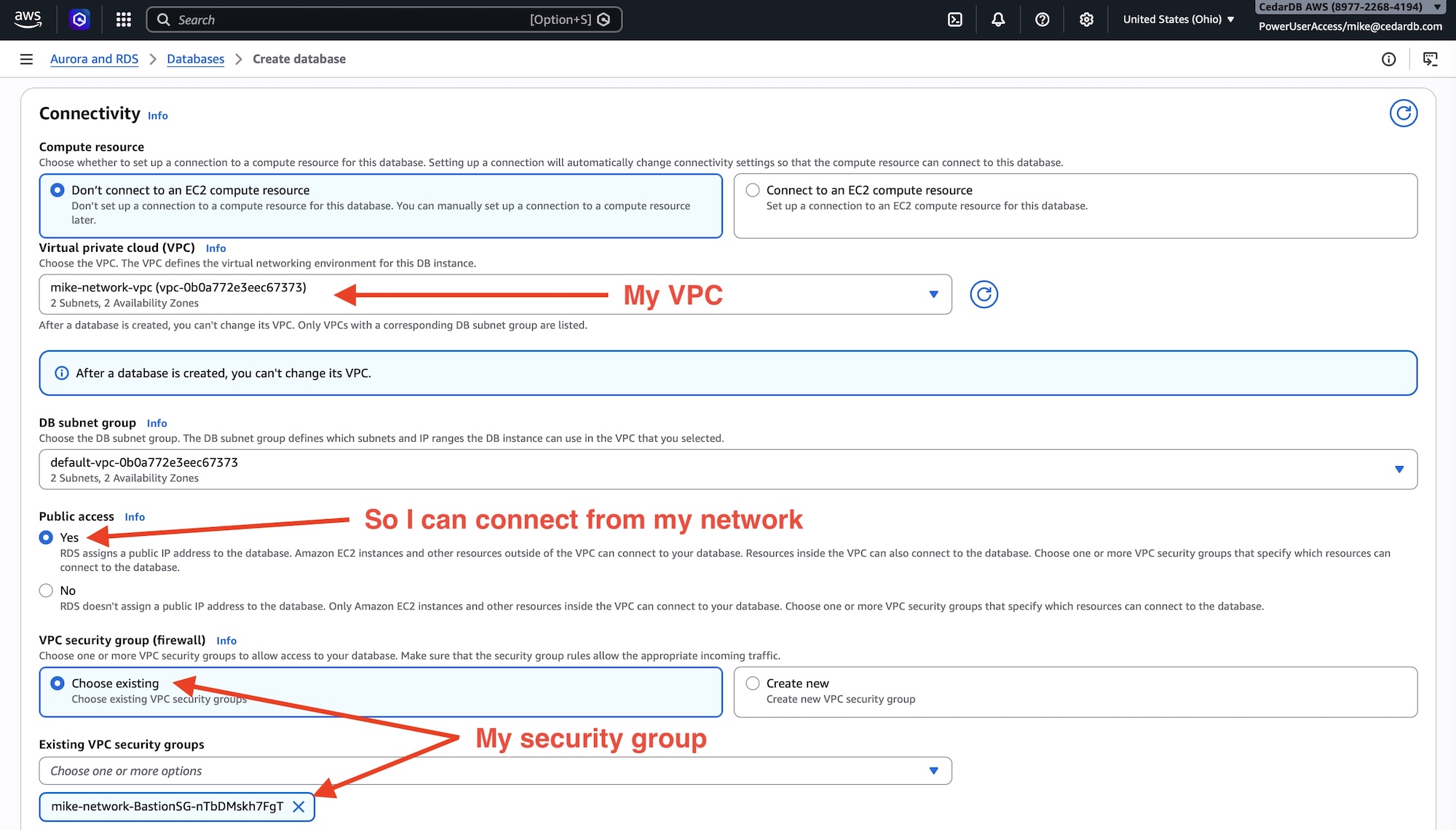

Choose VPC, public access

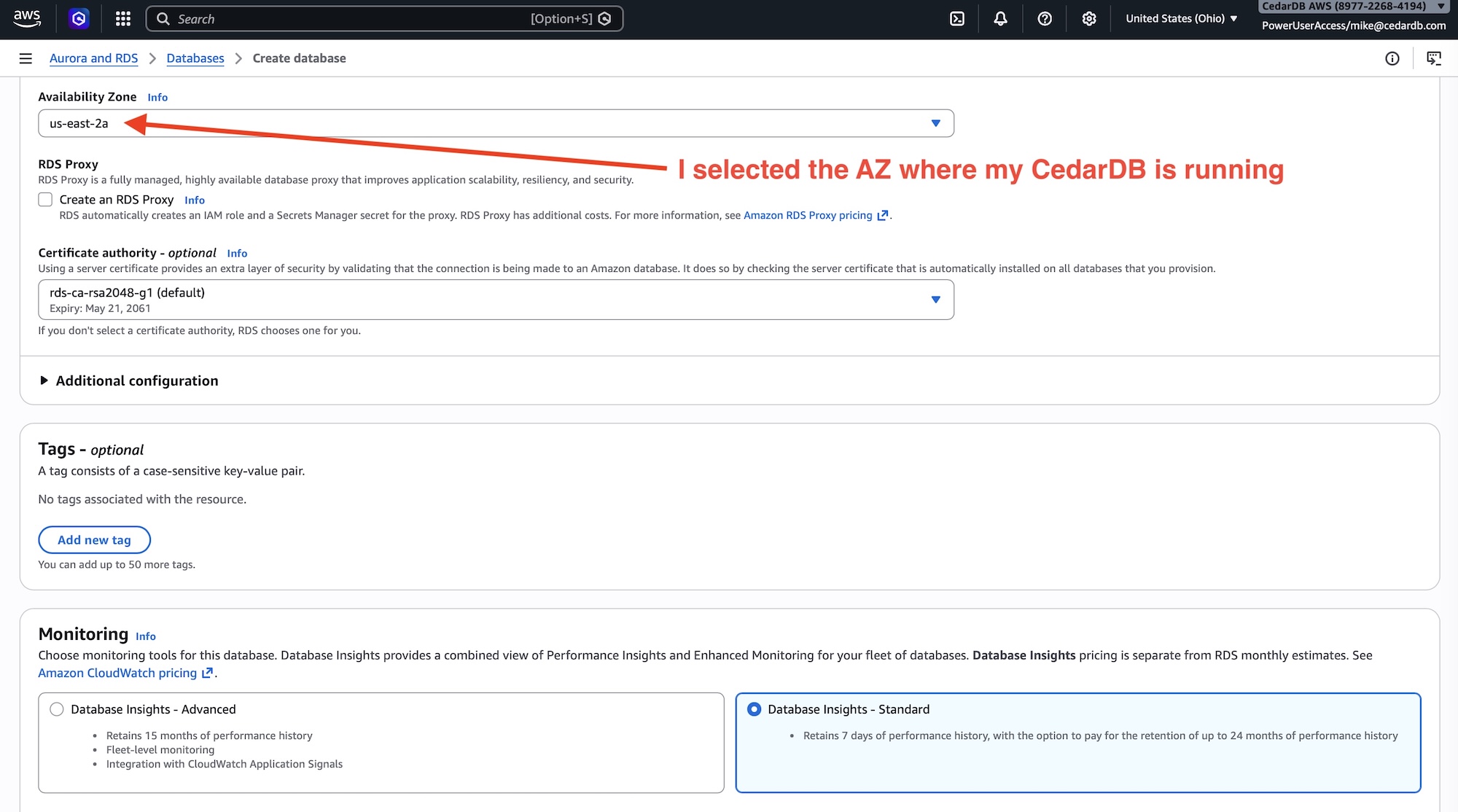

Security group

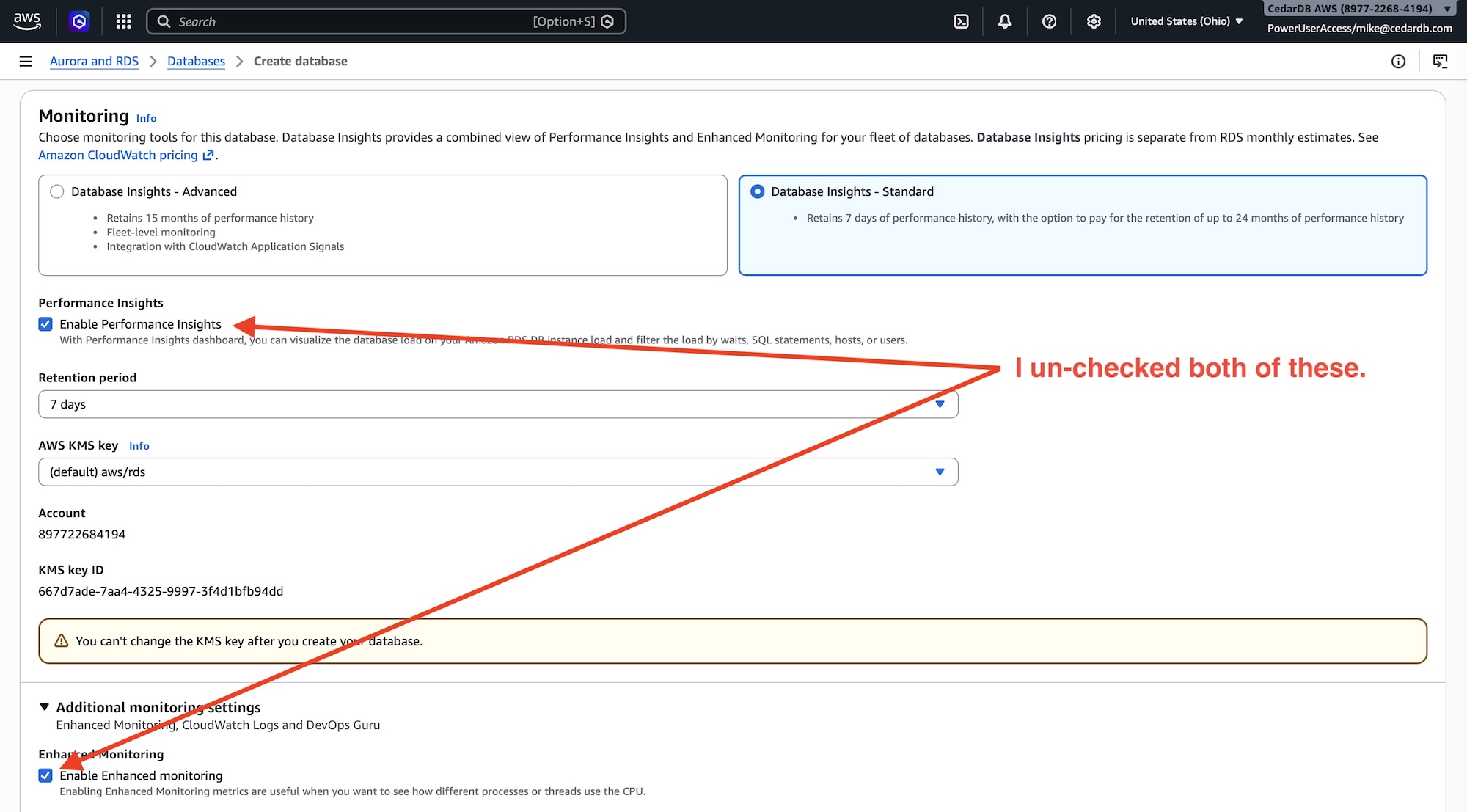

More options

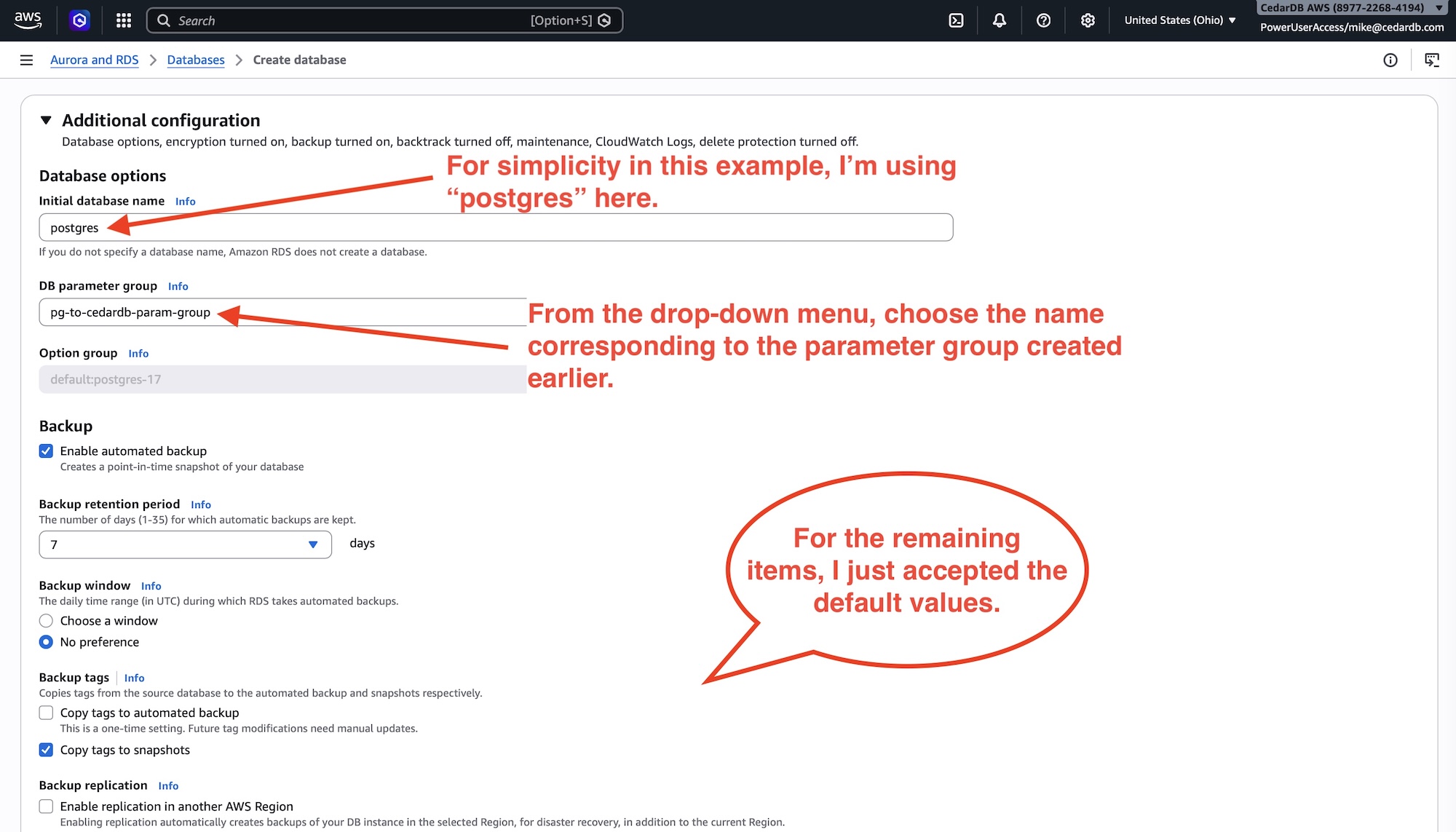

Apply parameter group

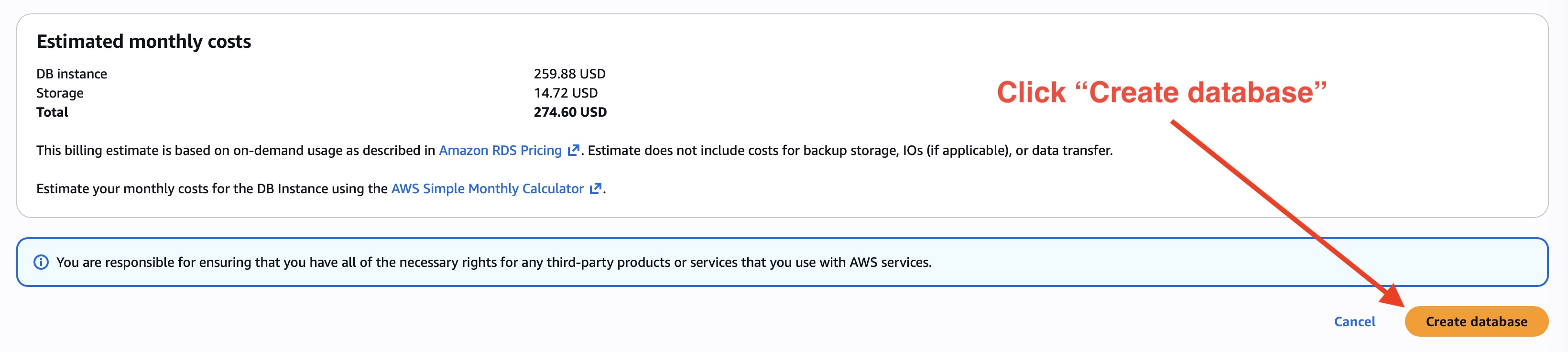

Create database

Now, wait a while for the RDS Postgres instance to come up.

Configure your existing RDS Postgres instance

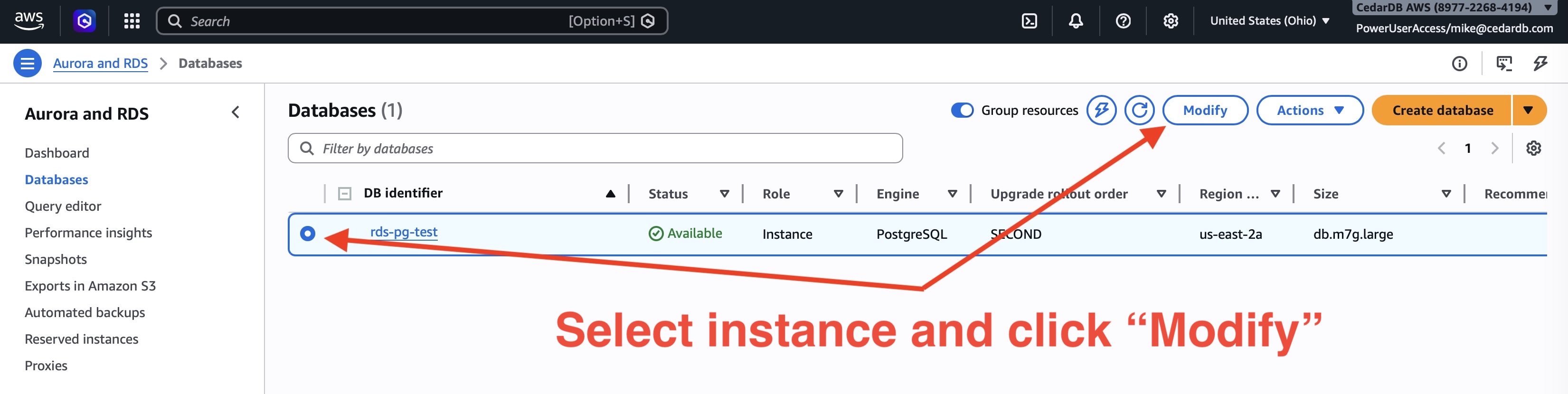

RDS Modify Step 1

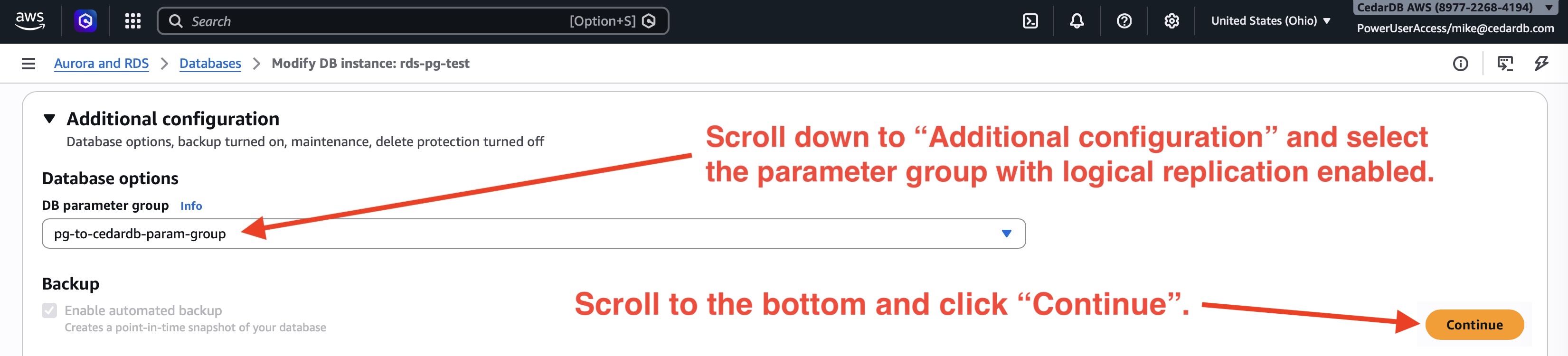

RDS Modify Step 2

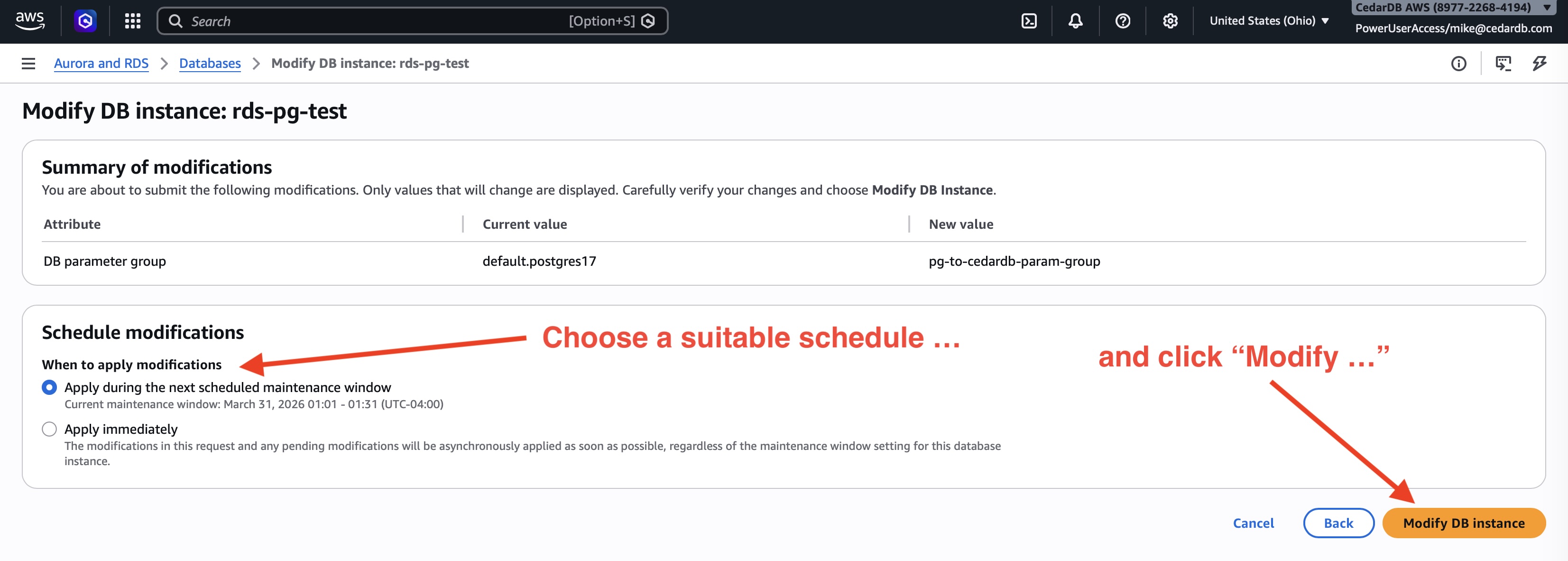

RDS Modify Step 3

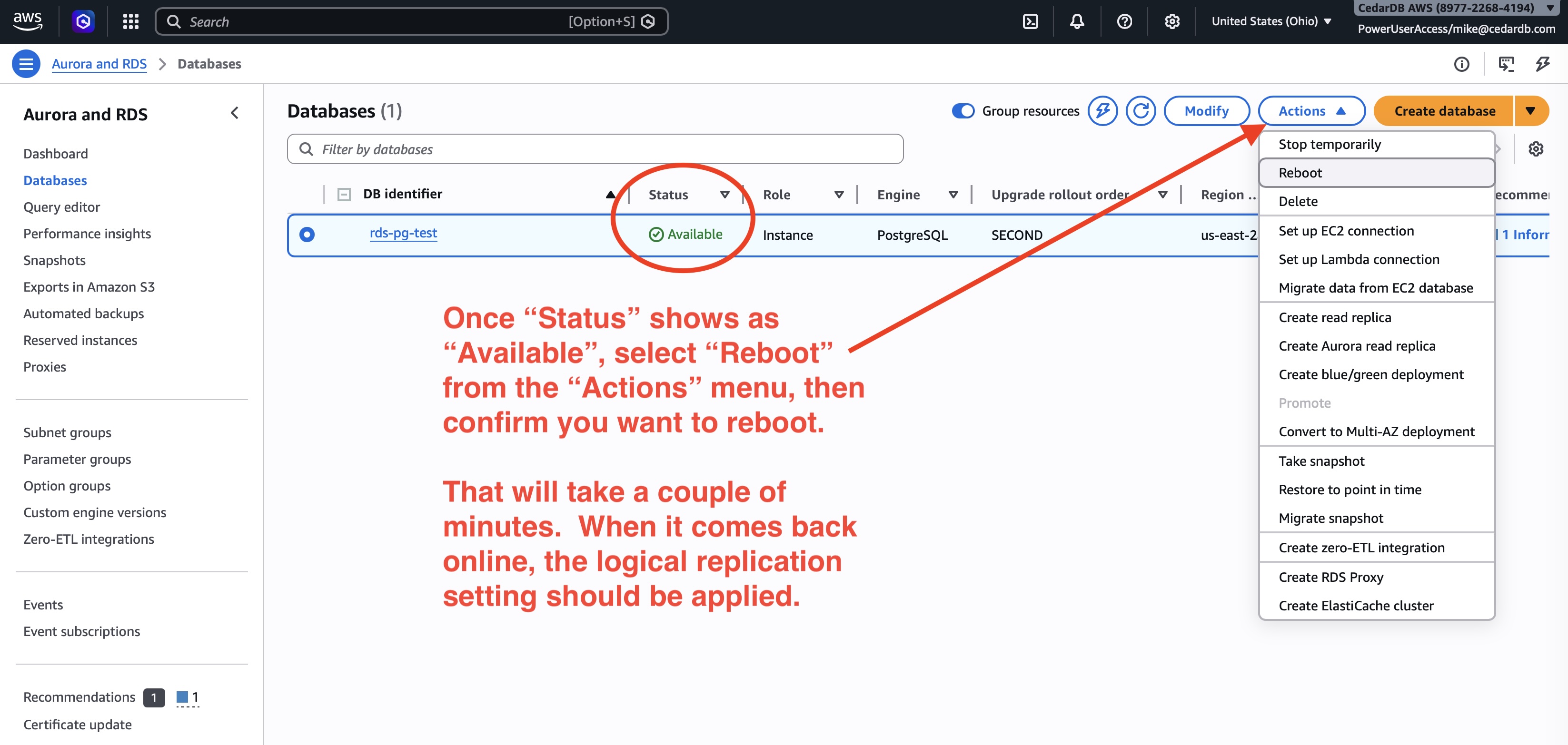

RDS Modify Step 4

(optional) Load a data set into the RDS instance

If this is just an exercise or demo, you will need some data to migrate. I chose this data set.

pg_restore -d postgres://postgres:pr3deb1tAmUSement@rds-pg.cfyqge68kqxu.us-east-1.rds.amazonaws.com/postgres \
  -Fc employees.sql.gz -c -v --no-owner --no-privileges

Verify the tables have been created and loaded:

$ psql "postgres://postgres:pr3deb1tAmUSement@rds-pg.cfyqge68kqxu.us-east-1.rds.amazonaws.com/postgres"
Timing is on.
psql (17.4, server 16.3)
SSL connection (protocol: TLSv1.3, cipher: TLS_AES_256_GCM_SHA384, compression: off, ALPN: none)
Type "help" for help.
postgres=> \dn
        List of schemas
   Name    |       Owner
-----------+-------------------
 employees | postgres
 public    | pg_database_owner
(2 rows)
postgres=> \dt employees.*
                 List of relations
  Schema   |        Name         | Type  |  Owner
-----------+---------------------+-------+----------
 employees | department          | table | postgres
 employees | department_employee | table | postgres
 employees | department_manager  | table | postgres
 employees | employee            | table | postgres
 employees | salary              | table | postgres
 employees | title               | table | postgres
(6 rows)
postgres=> select count(*) from employees.department;
 count
-------
     9
(1 row)

Time: 15.528 ms
postgres=> select count(*) from employees.department_employee;
 count
--------
 331603
(1 row)

Time: 26.052 ms
postgres=> select count(*) from employees.department_manager;
 count
-------
    24
(1 row)

Time: 18.947 ms
postgres=> select count(*) from employees.employee;
 count
--------
 300024
(1 row)

Time: 23.509 ms
```sql
postgres=> select count(*) from employees.salary;
  count
---------
 2844047
(1 row)

Time: 82.885 ms
postgres=> select count(*) from employees.title;
 count
--------
 443308
(1 row)

Time: 27.676 ms

Create the DMS source endpoint

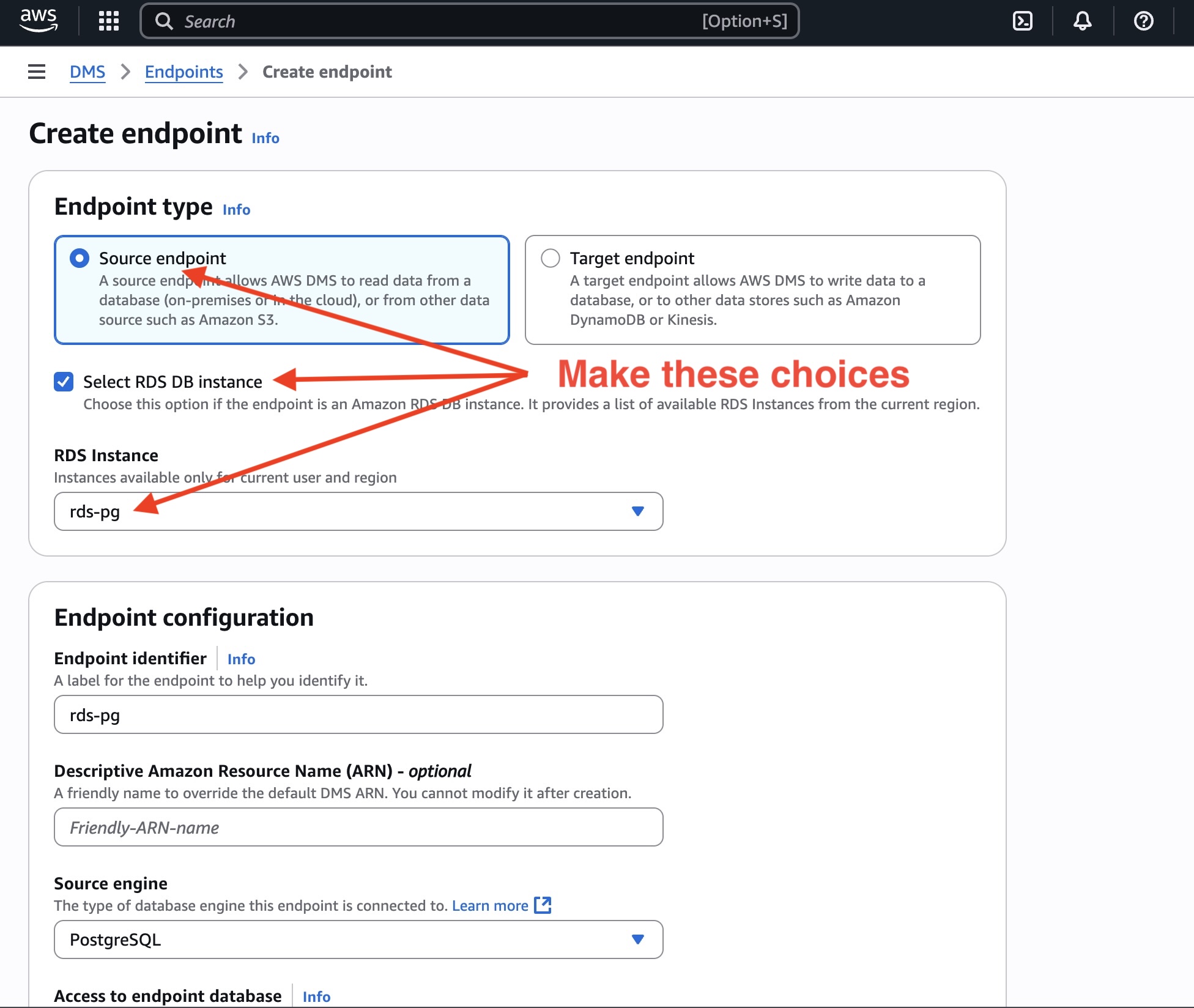

DMS source step 1

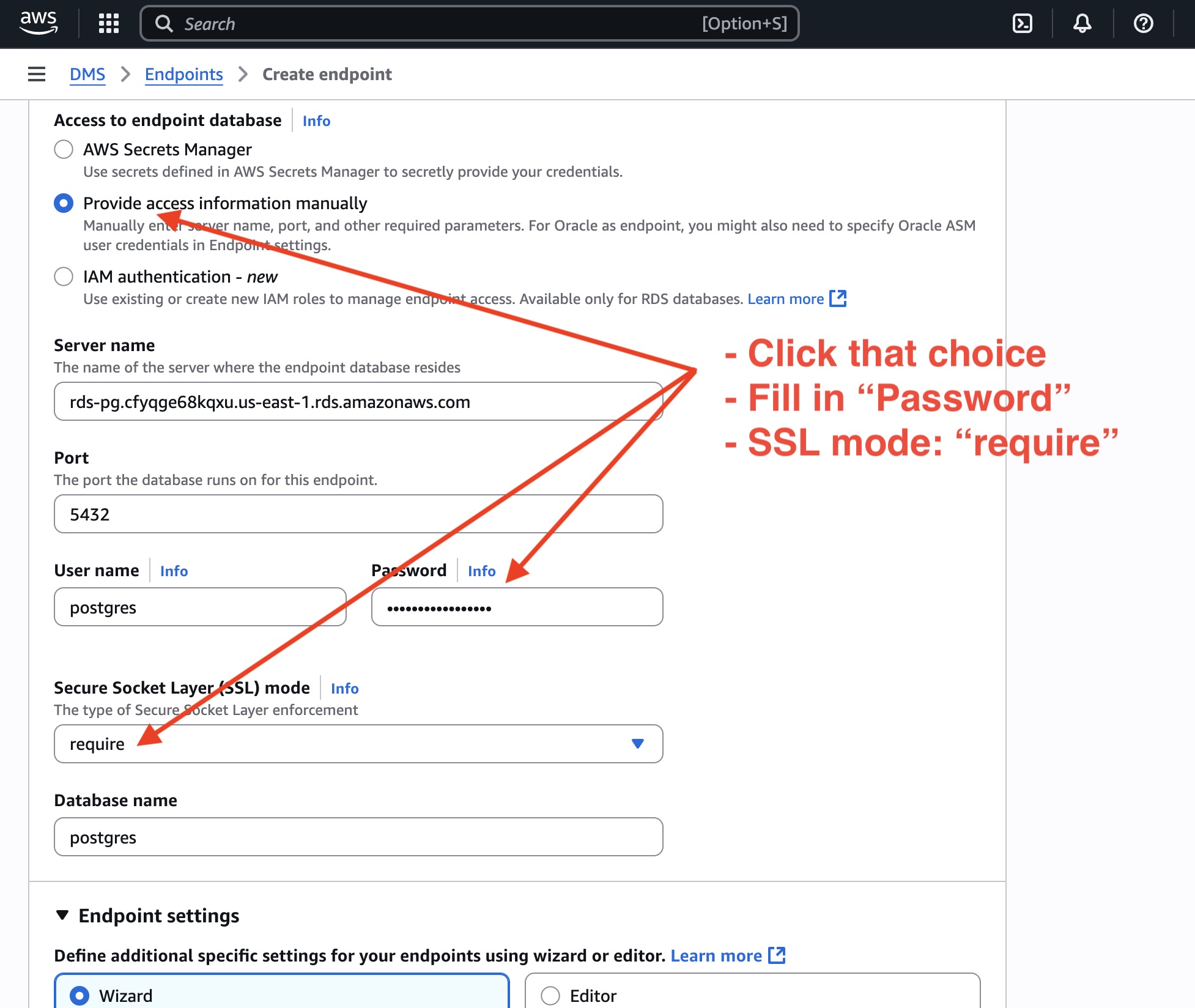

DMS source step 2

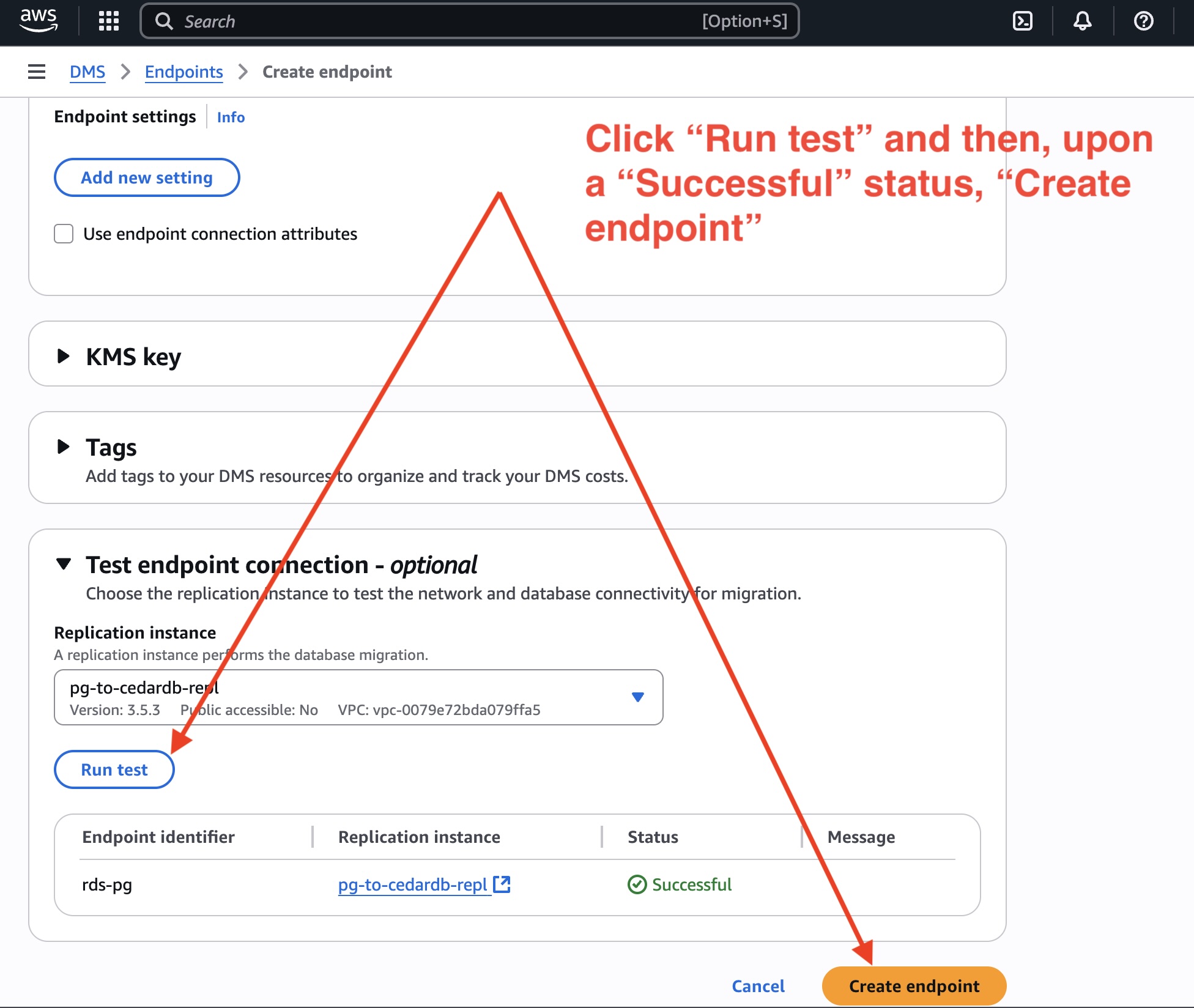

DMS source step 3

Create the DMS target endpoint

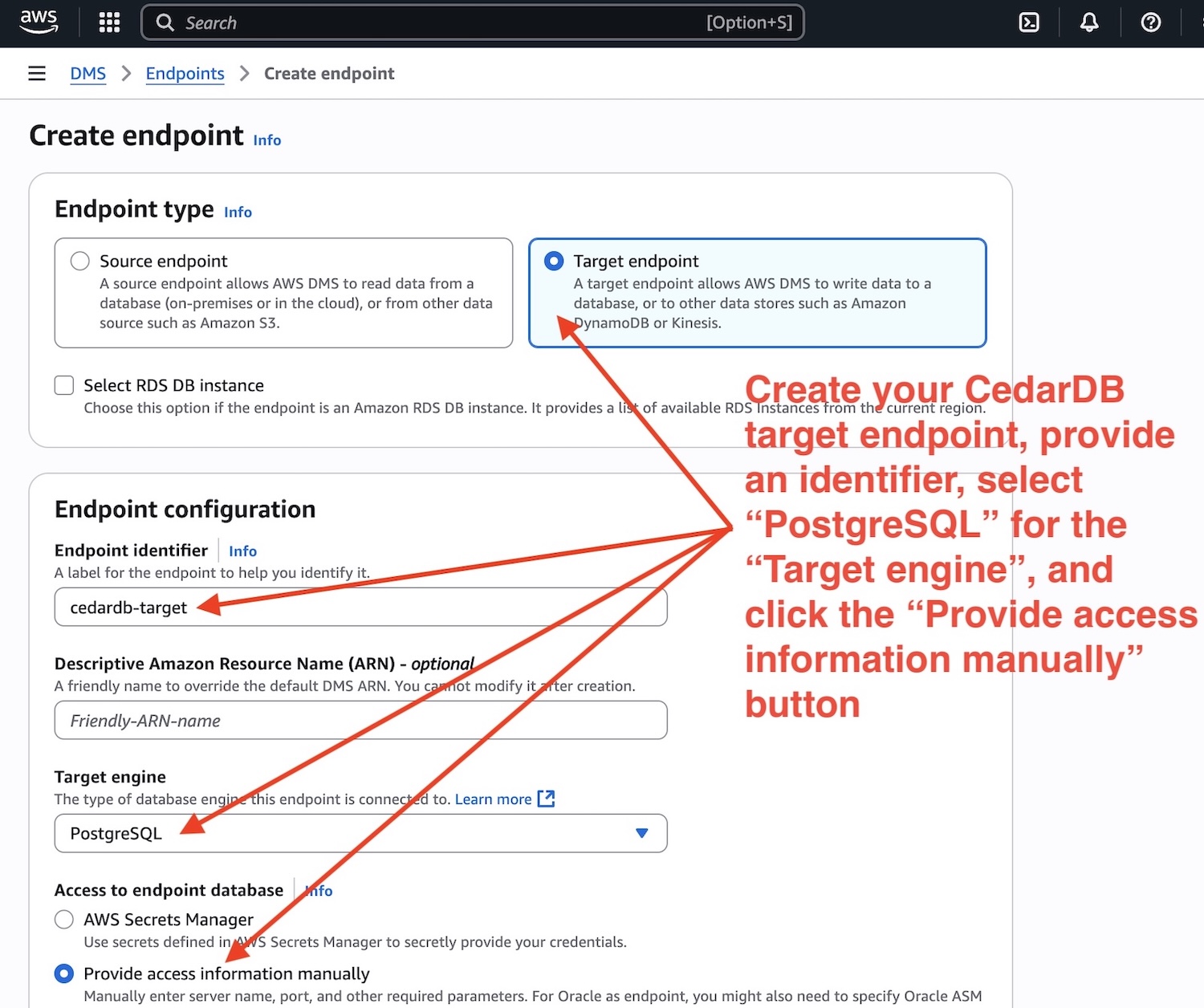

DMS target step 1

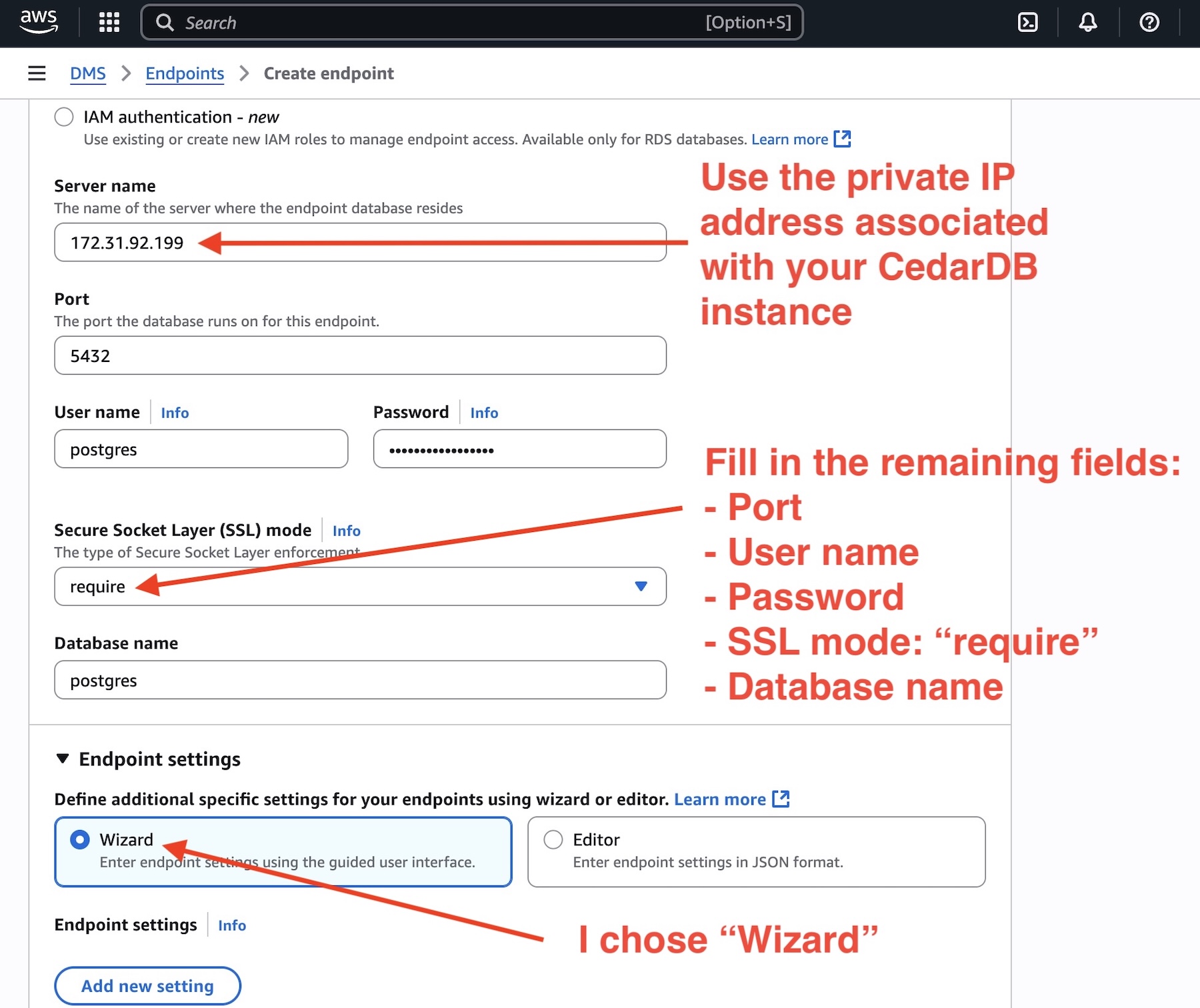

DMS target step 2

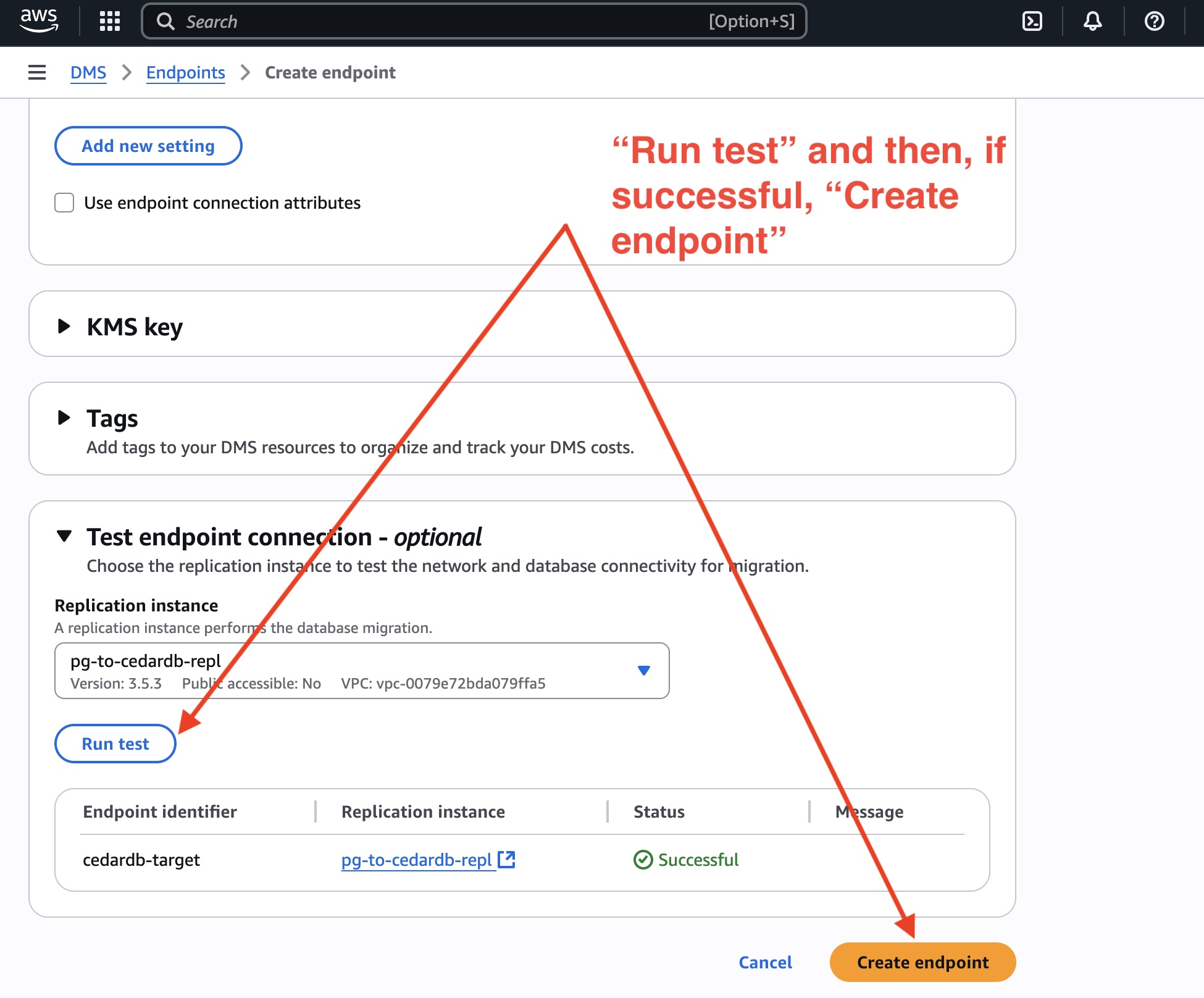

DMS target step 3

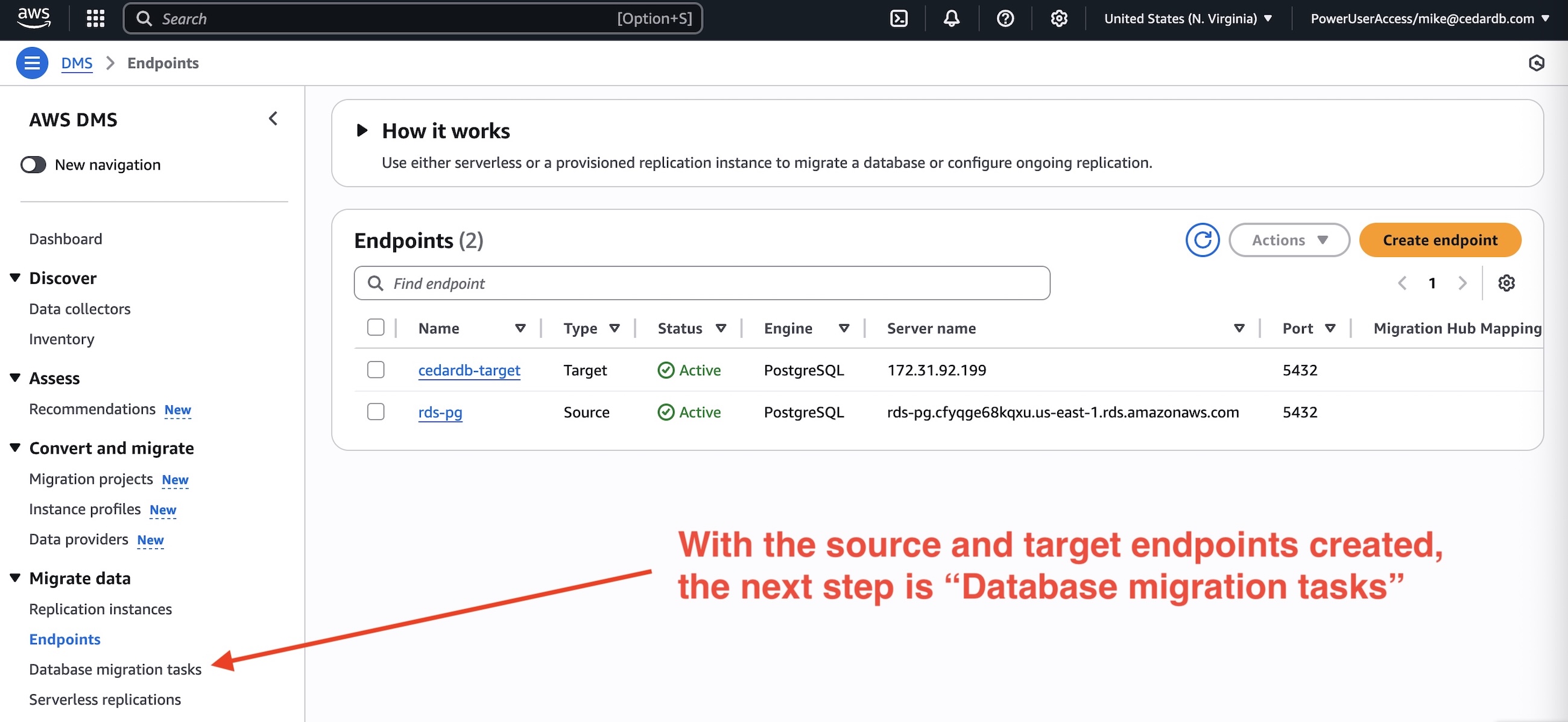

DMS endpoints created

Create the DMS migration task

Create task step 1

Create task step 2

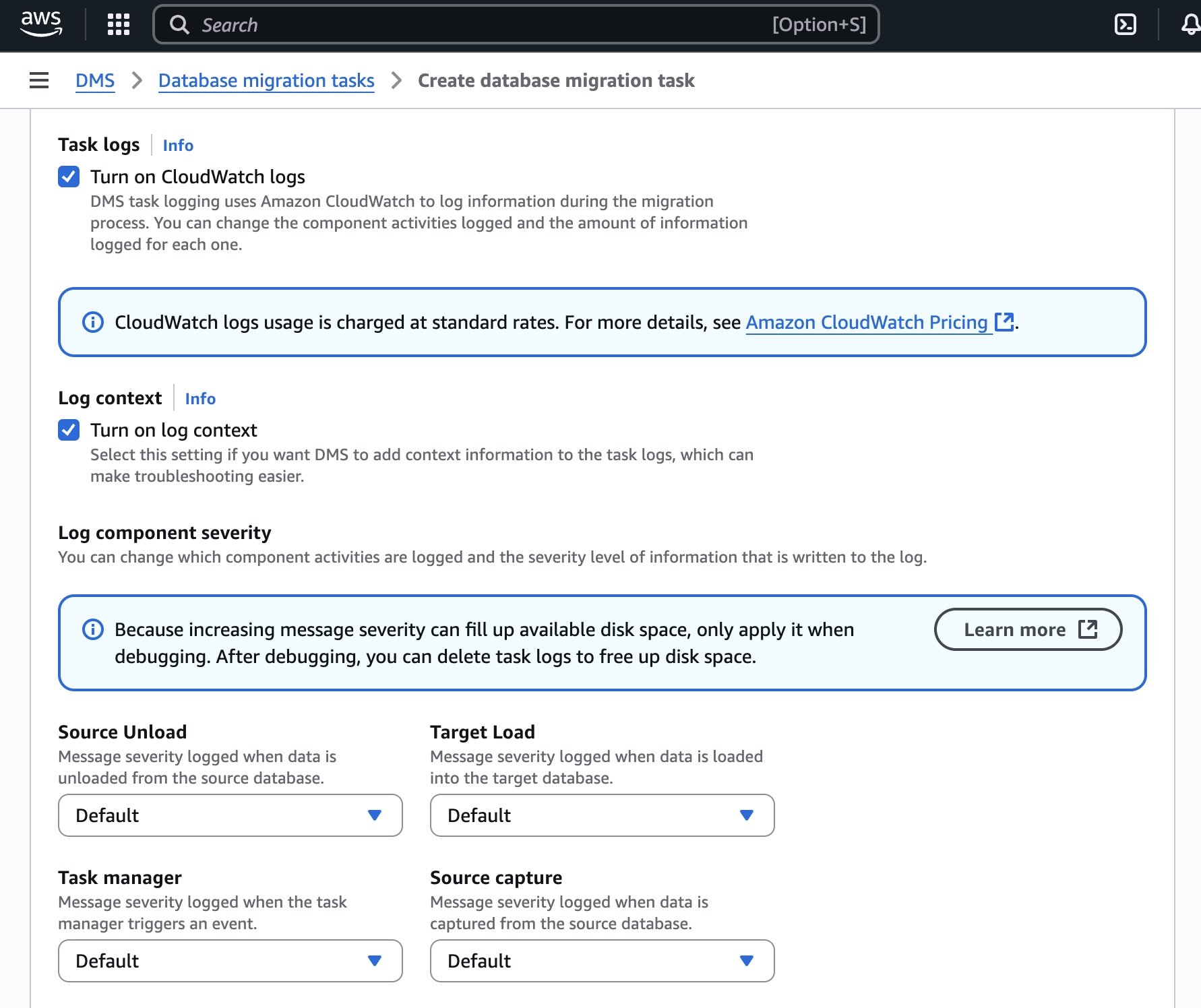

Create task step 3

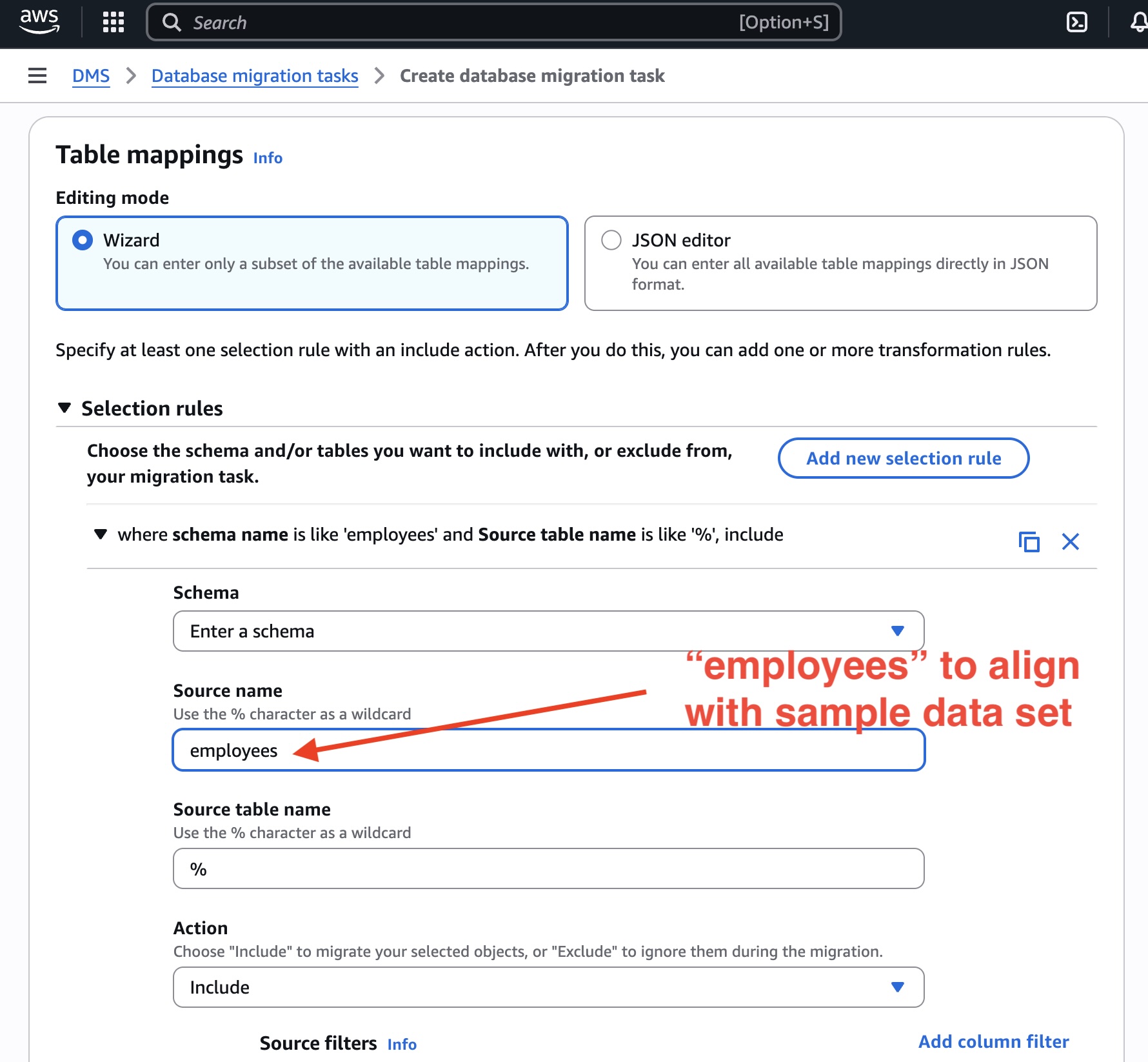

Create task step 4

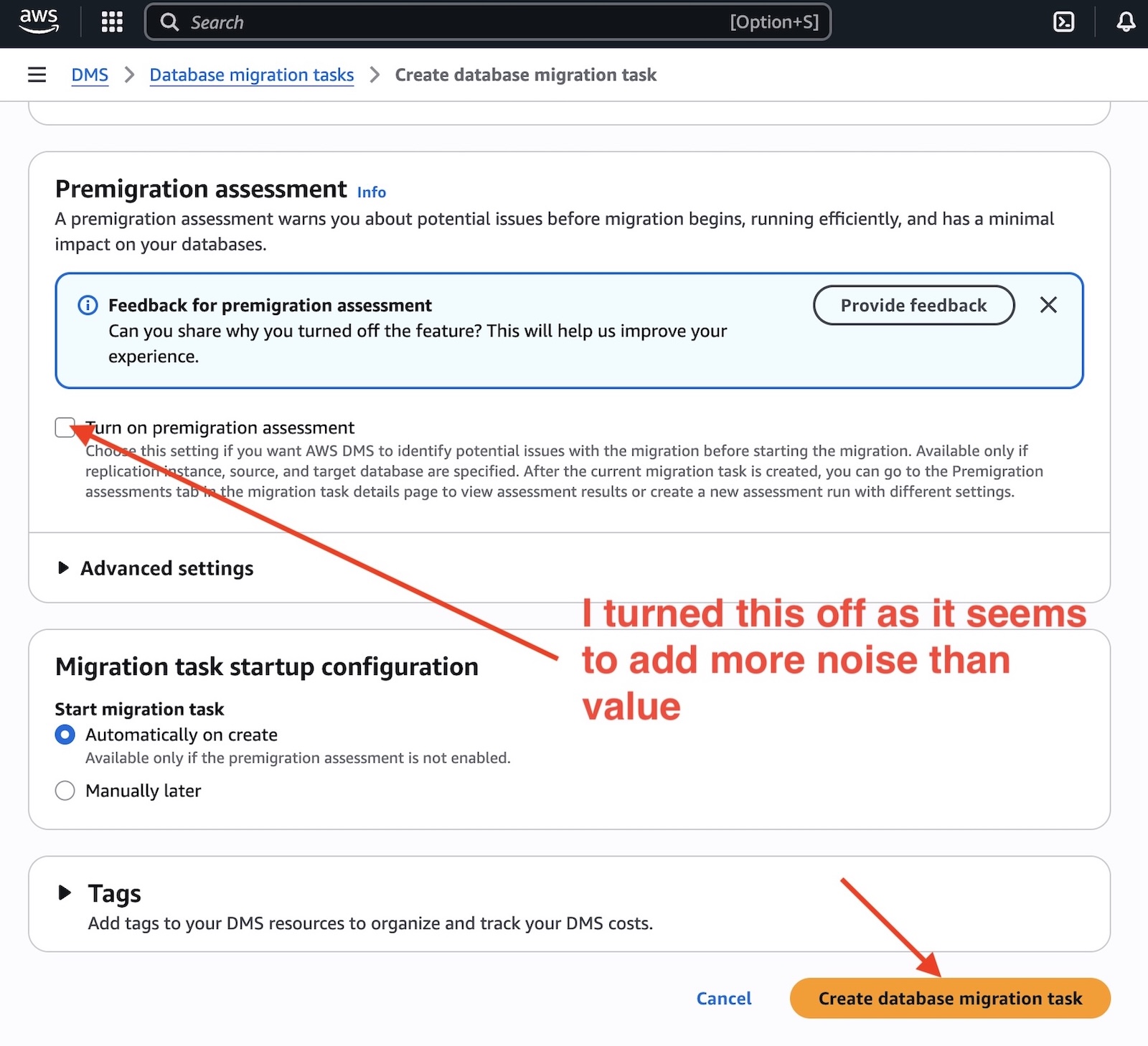

Create task step 5

Monitor DMS migration

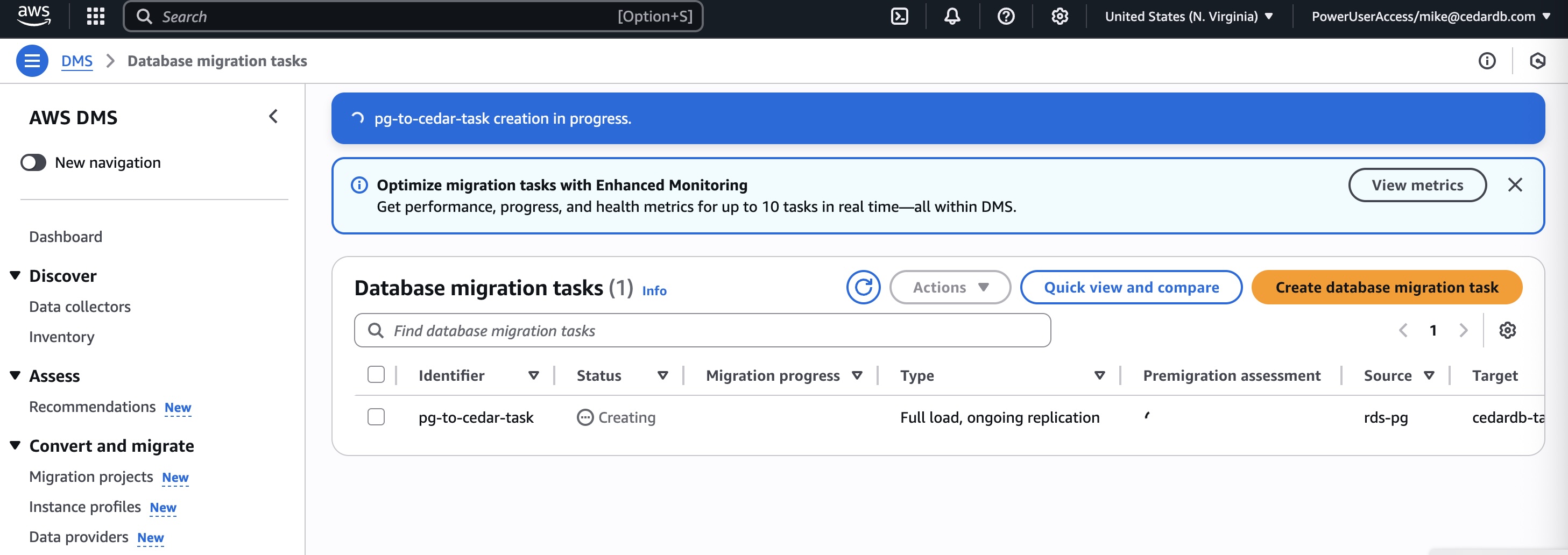

Migration started

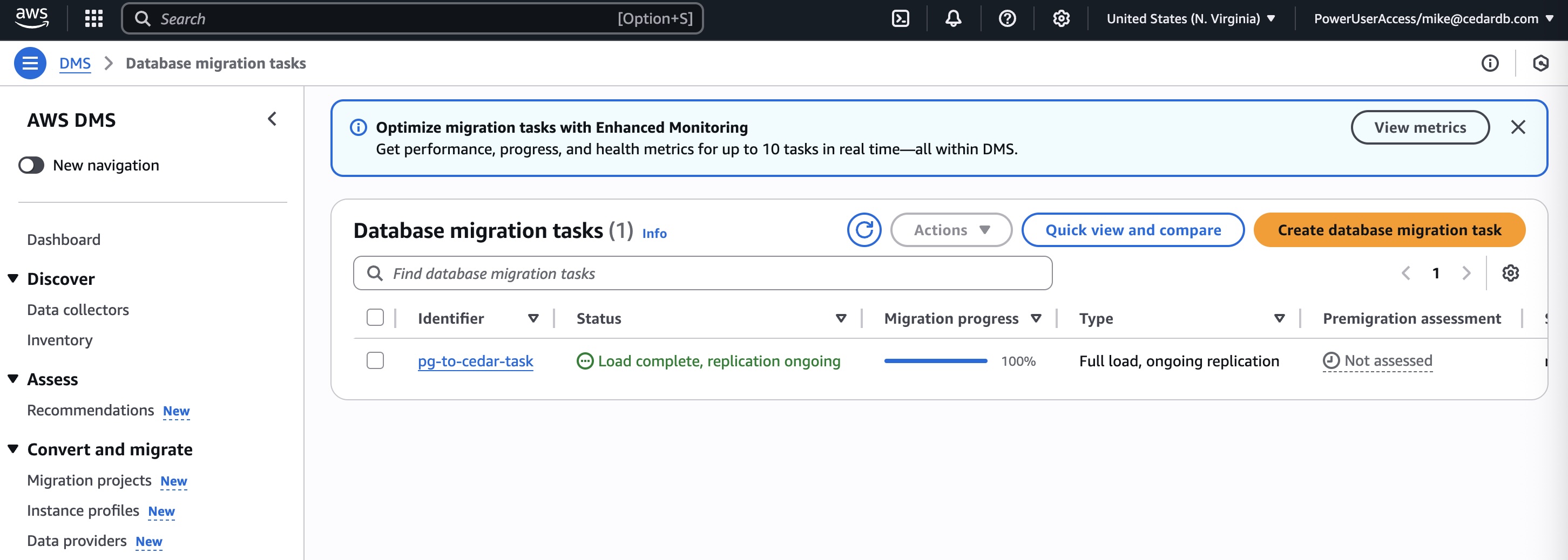

Migration finished

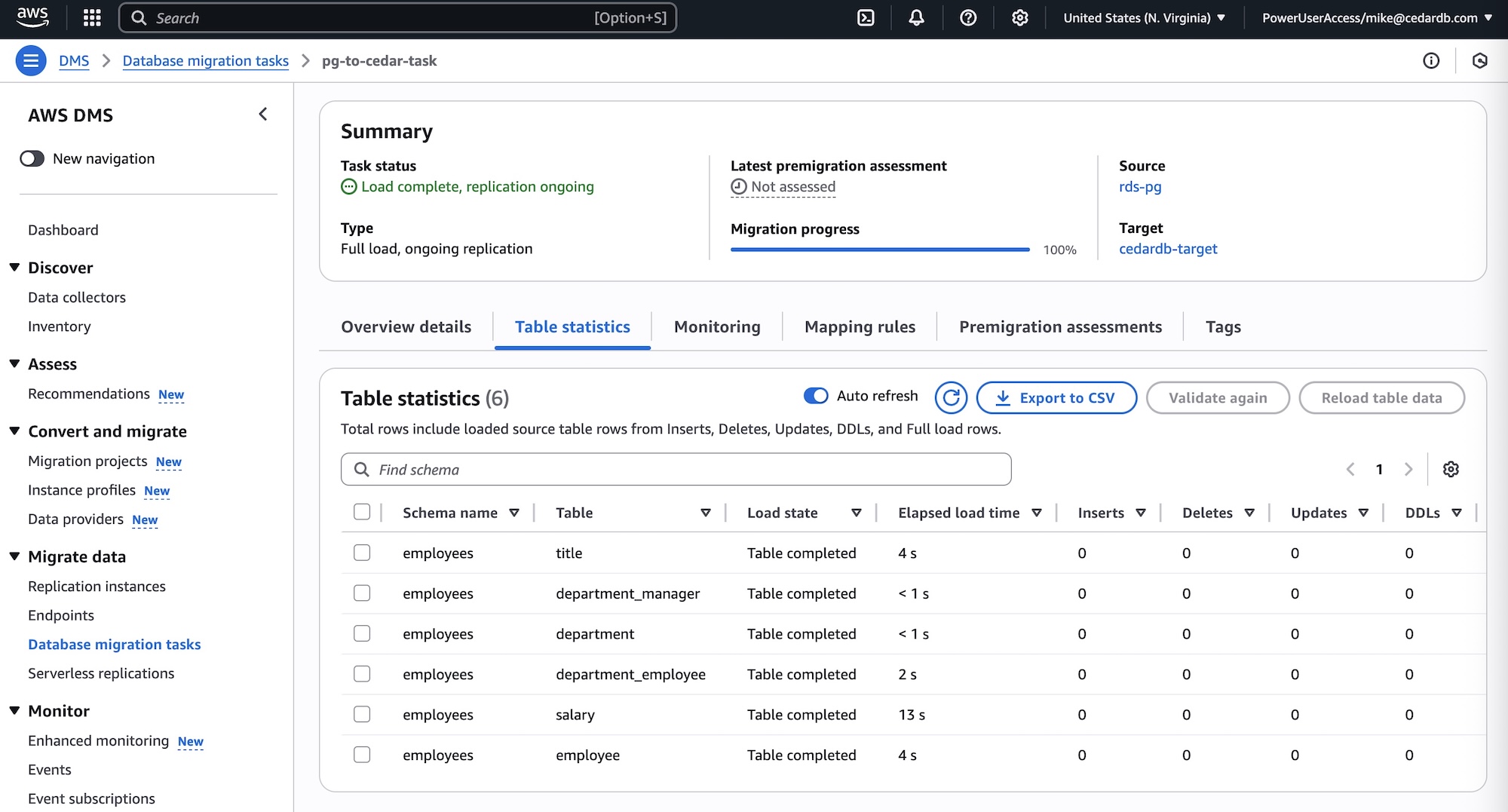

Migration summary

Verify tables and row counts on the CedarDB target

$ psql "postgresql://postgres:pr3deb1tAmUSement@ec2-100-26-195-182.compute-1.amazonaws.com:5432/postgres"
Timing is on.
psql (17.4, server 16.3 cedar v2025-06-20)
SSL connection (protocol: TLSv1.3, cipher: TLS_AES_256_GCM_SHA384, compression: off, ALPN: none)
Type "help" for help.
postgres=# \dn
   List of schemas
   Name    |  Owner
-----------+----------
 employees | postgres
 public    | postgres
(2 rows)
postgres=# \dt employees.*
                 List of relations
  Schema   |        Name         | Type  |  Owner
-----------+---------------------+-------+----------
 employees | department          | table | postgres
 employees | department_employee | table | postgres
 employees | department_manager  | table | postgres
 employees | employee            | table | postgres
 employees | salary              | table | postgres
 employees | title               | table | postgres
(6 rows)
postgres=# select count(*) from employees.department;
 count
-------
     9
(1 row)

Time: 17.725 ms
postgres=# select count(*) from employees.department_employee;
 count
--------
 331603
(1 row)

Time: 15.559 ms
postgres=# select count(*) from employees.department_manager;
 count
-------
    24
(1 row)

Time: 14.472 ms
postgres=# select count(*) from employees.employee;
 count
--------
 300024
(1 row)

Time: 21.151 ms
postgres=# select count(*) from employees.salary;
  count
---------
 2844047
(1 row)

Time: 15.671 ms
postgres=# select count(*) from employees.title;
 count
--------
 443308
(1 row)

Time: 18.557 ms

If you intend to follow the next procedure, keep that CedarDB client connection open; otherwise, you can close it.

Verify that an UPDATE on the RDS Postgres instance is replicated to the CedarDB target

Log into the RDS Postgres instance.

$ psql "postgresql://postgres:g3n0A3aRApaimA@rds-pg.ctkkwgwc2jnl.us-east-2.rds.amazonaws.com:5432/postgres?sslmode=require"
Timing is on.
psql (18.1, server 17.6)
SSL connection (protocol: TLSv1.3, cipher: TLS_AES_256_GCM_SHA384, compression: off, ALPN: postgresql)
Type "help" for help.

postgres=>

Using the employees.salary table, validate the initial state agrees both here on the source and on the CedarDB target.

On the RDS Postgres instance:

postgres=> select * from employees.salary where employee_id = 10004 order by from_date, to_date;
 employee_id | amount | from_date  |  to_date
-------------+--------+------------+------------
       10004 |  40054 | 1986-12-01 | 1987-12-01
       10004 |  42283 | 1987-12-01 | 1988-11-30
       10004 |  42542 | 1988-11-30 | 1989-11-30
       10004 |  46065 | 1989-11-30 | 1990-11-30
       10004 |  48271 | 1990-11-30 | 1991-11-30
       10004 |  50594 | 1991-11-30 | 1992-11-29
       10004 |  52119 | 1992-11-29 | 1993-11-29
       10004 |  54693 | 1993-11-29 | 1994-11-29
       10004 |  58326 | 1994-11-29 | 1995-11-29
       10004 |  60770 | 1995-11-29 | 1996-11-28
       10004 |  62566 | 1996-11-28 | 1997-11-28
       10004 |  64340 | 1997-11-28 | 1998-11-28
       10004 |  67096 | 1998-11-28 | 1999-11-28
       10004 |  69722 | 1999-11-28 | 2000-11-27
       10004 |  70698 | 2000-11-27 | 2001-11-27
       10004 |  74057 | 2001-11-27 | 9999-01-01
(16 rows)

Time: 33.390 ms

On the CedarDB instance:

postgres=# select * from employees.salary where employee_id = 10004 order by from_date, to_date;
 employee_id | amount | from_date  |  to_date
-------------+--------+------------+------------
       10004 |  40054 | 1986-12-01 | 1987-12-01
       10004 |  42283 | 1987-12-01 | 1988-11-30
       10004 |  42542 | 1988-11-30 | 1989-11-30
       10004 |  46065 | 1989-11-30 | 1990-11-30
       10004 |  48271 | 1990-11-30 | 1991-11-30
       10004 |  50594 | 1991-11-30 | 1992-11-29
       10004 |  52119 | 1992-11-29 | 1993-11-29
       10004 |  54693 | 1993-11-29 | 1994-11-29
       10004 |  58326 | 1994-11-29 | 1995-11-29
       10004 |  60770 | 1995-11-29 | 1996-11-28
       10004 |  62566 | 1996-11-28 | 1997-11-28
       10004 |  64340 | 1997-11-28 | 1998-11-28
       10004 |  67096 | 1998-11-28 | 1999-11-28
       10004 |  69722 | 1999-11-28 | 2000-11-27
       10004 |  70698 | 2000-11-27 | 2001-11-27
       10004 |  74057 | 2001-11-27 | 9999-01-01
(16 rows)

Time: 31.985 ms

On the RDS Postgres instance, give the employee with ID 10004 a raise.

postgres=> begin;
BEGIN
Time: 28.403 ms
postgres=*> update employees.salary set to_date = now()::date where employee_id = 10004 and to_date = '9999-01-01'::date;
UPDATE 1
Time: 29.223 ms
postgres=*> insert into employees.salary (employee_id, amount, from_date, to_date) values (10004, 74057 + 5000, now()::date, '9999-01-01'::date);
INSERT 0 1
Time: 28.012 ms
postgres=*> commit;
COMMIT
Time: 113.268 ms

Verify that raise:

postgres=> select * from employees.salary where employee_id = 10004 and amount >= 74057 order by from_date;
 employee_id | amount | from_date  |  to_date
-------------+--------+------------+------------
       10004 |  74057 | 2001-11-27 | 2026-03-23
       10004 |  79057 | 2026-03-23 | 9999-01-01
(2 rows)

Time: 34.304 ms

Back on the CedarDB instance, verify that transaction was replicated

postgres=# select * from employees.salary where employee_id = 10004 and amount >= 74057 order by from_date;
 employee_id | amount | from_date  |  to_date
-------------+--------+------------+------------
       10004 |  74057 | 2001-11-27 | 2026-03-23
       10004 |  79057 | 2026-03-23 | 9999-01-01
(2 rows)

Time: 26.653 ms
